Fluval Spec V led lighting


  • Please log in to reply
No replies to this topic

#1
tsunamee

tsunamee

    Nano Reefer

  • Members
  • 42 posts
  • Joined 13 May 2008

I thought this may be the more appropriate place for my question. Would it be worth it to add a 420nm violet led?

Copied from my build thread...........

Back with new stats and pics of modified lighting.

Old:
4 x Royal Blue
2 x Neutral White
1 x Nano Driver with Potentiometer 700mA
1 x Moonlight Driver 350mA

1 x Nano Driver control 2 x RB and 2 X NW
1 x Moonlight Driver control 2 x RB
Passive Cooling

New:
4 x Royal Blue
2 x Neutral White
1 x Ocean Coral White
2 x Nano Driver with Potentiometer 700mA
1 x Moonlight Driver 350mA modded with potentiometer

1 x Nano Driver control 4 x RB
1 x Nano Driver control 2 x NW
1 x Moonlight Driver control 1 x OCW

Now for some pics.....

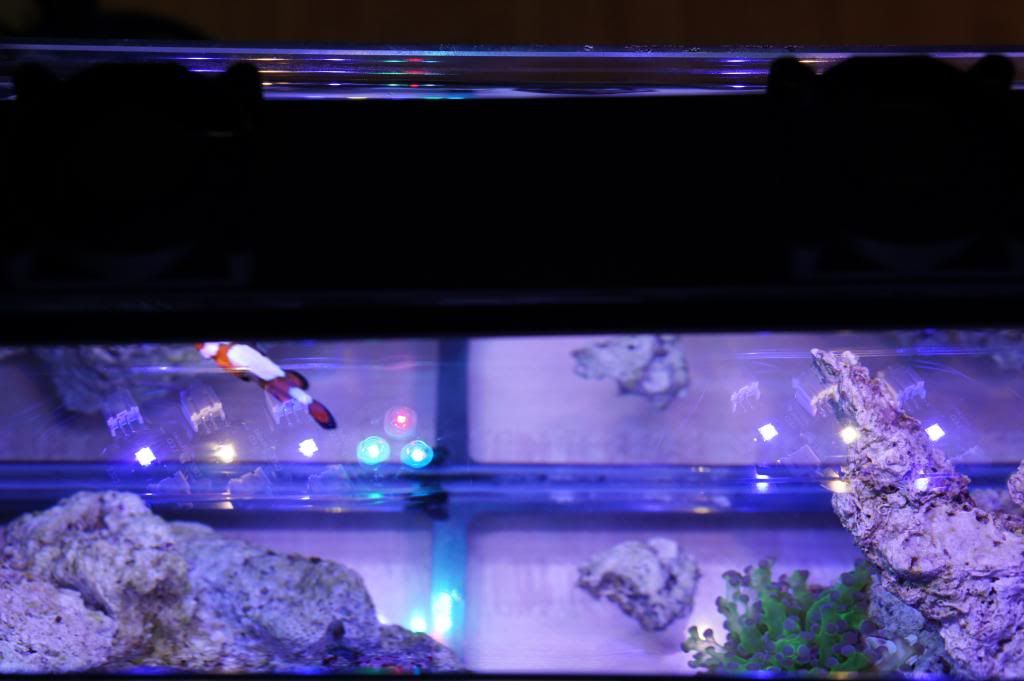

Fans installed running at 6v (very quiet) and reflection of the light configuration.

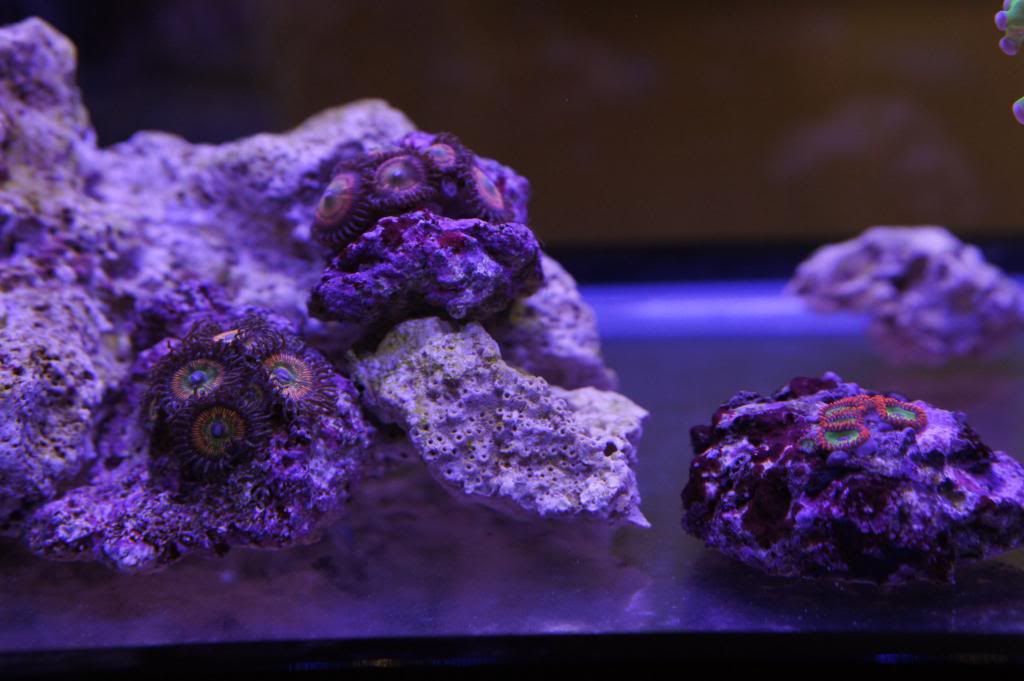

Not the final, because I'm still light acclimating, but the lighting thus far.

RB running ~350mA, NW running at ~210mA, and OCW off
RB running ~350mA, NW running at ~210mA, and OCW running at ~175mA
