Jnam's beta cube .7 gallons...


  • Please log in to reply
28 replies to this topic

#1
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID

Jnam's contest thread
The Beta cube.


Posted Image
Mehn need to fix the white balance but here is the FTS


Posted Image
What I bought last night, the small container on the top will be the fuge

Posted Image
So you can get a feel for the relative size of this little cube


If you would like to participate ------------> http://www.nano-reef...howtopic=296857

.7 gallons of sexyness. I am going the LED route and more than likely using my DIY controller on this one or building a new smaller version. The plan is for something very clean with nice straight lines. There will be a canopy and a base at some point. I dont plan on detailing to much of the goings on right away you'll just have to check back and see for your self =)

Equiptment
.7 Gallon Aquaculture Beta Cube
DIY .5 Gallon fuge
AC50 <----- may change based on asthetics
small return pump
Theo 50w heater
DIY LED lighting 1xCW 2xRB
DIY Arduino controller including ATO

Everything should hide will inside of the fuge except the AC50 which will be used mostly for flow

Stocking
<1lbs of LR
Who knows how little LS
The rest is Ninja status until it makes it into the tank =)

If anyone is interested in the breakdown of my DIY components let me know I am happy to provide schematics and coding or walkthroughs on creating your own.

Cheers all!

Edited by jnam, 29 March 2012 - 11:22 AM.


#2
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID

The controller


I will edit this post periodically to show the progress on the controller for this little tank.

Components
Arduino328 Nano usb
DS1307 RTC I2C
Dallas 1 wire Temp
16x2 LCD
2 switchable mains
Possibility of Blue Tooth serial conectivity.

Functions
The controller will display heads up information about the tank on the 16x2 screen: Temp, alarm states, diming percentages, overides and time.
The controller will be programed to fade on and fade off the LEDs on a full day cycle and then again for the moonlight channels.
It will also control ATO functionality as well as monitoring for alarm states like overfill on the ATO and water/led temps as well as failed restart or possible flood state of the pico.
Two controllable mains plugs will be available (possibly more) for switching on and off pumps for feeding time and dedicated ATO use.

Any other suggestions?
LED on off and fade rate will be editable natively within the controller and should be expandable through I2C for later use. This is all based off of my first controller but I want something with a signifigantly smaller form factor to match the theme of this pico.

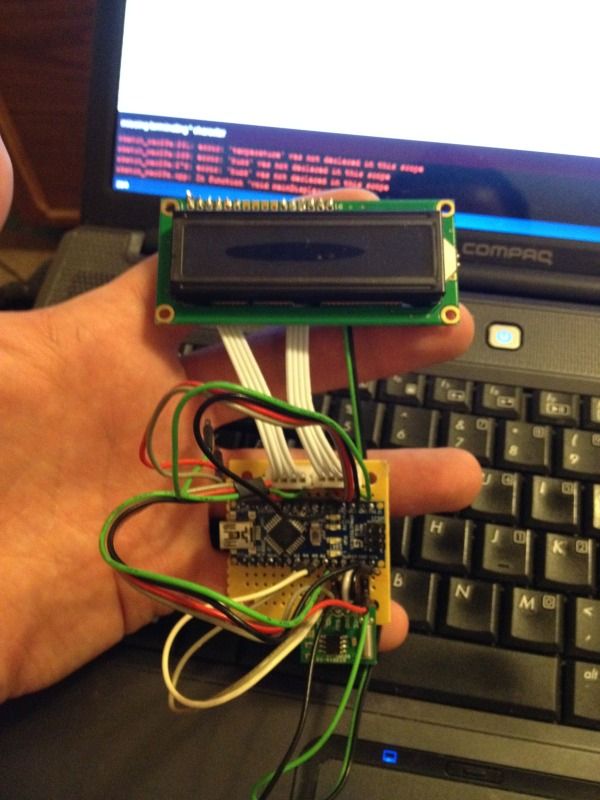

Posted Image
Soldering and internals contruction is about 80%

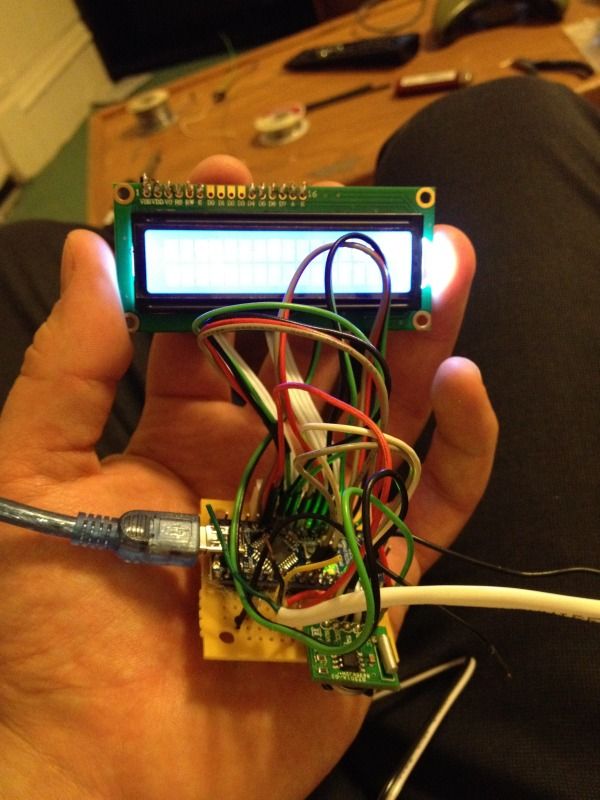

Posted Image
All lit up.

Posted Image
What you see on the screen
ignore my crap soldering PLEASE I need a new tip on my iron but the joints get the job done lol

So what we have up and running:
LCD with display
Real Time Clock
Temperatures
ATO functions
I have the coding done for the on and off of the lights just not 100% on the fading
Water proofed the dallas 1wire sensor


What I have left:
Build the case
Build the powercenter

I cant decide if I want to incorporate the 110V into the box it self or do a stand alone. I am using SSRs
which are rather bulky so having a seperate "module" might be the best idea.
Finish the dimming for the sunrise/susent effect
Decide on user interface, do I want to do an IR remote or hard buttons on the controller?????
Create the menu functions to change values natively in the controller
Did I mention building a case... lol

I cant decide here if I want to just do a standard stand alone case or if I want to incorporate the display
and keys into the hood/base or if I want sitting to the side... decisions decisions

The Light



Posted Image
The components that will be canabalized to create the lighting and interface for the controller



Posted Image
Roughin of light mounting with the AC50.


The light needs to be changed slightly currently it has 4 CW from when it used to be over a planted FW tank. I am removing 3 of the CW and replacing them with 2 RB LEDs. 3 LEDs should be more than enough maybe even overkill still. And I am not dimming the LEDs on seperate channels so I want a more blue apearance.

Edited by jnam, 29 March 2012 - 11:13 AM.


#3
GTi

GTi

    Nano Reefer

  • Members
  • 1,486 posts
  • Joined 14 Sep 2011
  • Michigan

The controller


I will edit this post periodically to show the progress on the controller for this little tank.

Components
Arduino328 Nano usb
DS1307 RTC I2C
Dallas 1 wire Temp
16x2 LCD
2 switchable mains

Functions
The controller will display heads up information about the tank on the 16x2 screen: Temp, alarm states, diming percentages, overides and time.
The controller will be programed to fade on and fade off the LEDs on a full day cycle and then again for the moonlight channels.
It will also control ATO functionality as well as monitoring for alarm states like overfill on the ATO and water/led temps as well as failed restart or possible flood state of the pico.
Two controllable mains plugs will be available (possibly more) for switching on and off pumps for feeding time and dedicated ATO use.

Any other suggestions?
LED on off and fade rate will be editable natively within the controller and should be expandable through I2C for later use. This is all based off of my first controller but I want something with a signifigantly smaller form factor to match the theme of this pico.

Sounds sweet! Following.

#4
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID

Sounds sweet! Following.


Awesome!

#5
boxboy

boxboy

    Nano Reefer

  • Banned by Moderators
  • 1,465 posts
  • Joined 17 Oct 2011
Im also tagging along. I wanna see this tank running.

#6
GTi

GTi

    Nano Reefer

  • Members
  • 1,486 posts
  • Joined 14 Sep 2011
  • Michigan

Awesome!

I have a Typhon controller (Arduino based) for my BC29 LED retrofit. All it does out of the box is control the lights but I know it is capable of so much more.

#7
iball1804

iball1804

    heard that!

  • Members
  • 10,942 posts
  • Joined 09 Apr 2011
  • where the wild things are
I've always been curious to these tanks. Glass or acrylic? Probably acrylic.

#8
Jacob042426

Jacob042426

    Nano Reefer

  • Members
  • 4,537 posts
  • Joined 24 Dec 2011
  • Miami
Probably plastic.

#9
Jacob042426

Jacob042426

    Nano Reefer

  • Members
  • 4,537 posts
  • Joined 24 Dec 2011
  • Miami
I mean plastic plastic, like a cheapo Walmart tank.

#10
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID
Yep plastic plastic cheapo walmart tank. Proof of concept more so than longevity of the tank it self. If I like the setup I will remove the cheap tank and make a glass one instead. Cheap tanks are fantastic for these subgallon picos if it crashes and gets nasty I can just huck the whole thing over the balcony. For the purpose of this competition it will suffice nicely. Although after pulling it from the box it does feel of higher quality than I was expecting.

I dont know much about the typhoon... but the Arduino328 is a very useful little device.

#11
dallasprstn

dallasprstn

    teen reefer

  • Members
  • 403 posts
  • Joined 18 Jan 2012
that makes my tank look huge lol!

#12
MetaTank

MetaTank

    Mmmmm....Cookies!!

  • Members
  • 561 posts
  • Joined 27 Nov 2011
  • Somewhere between the Ocean and the Mountains of SoCal
Woot! Looking good, i'm subscribed! Welcome to the contest, and Good Luck!

Contest Judge
Meta

Always Tanking
>^..^<
Meta


Meta's DoubleVision Picotope Paradise


#13
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID
I got some wet water into it today on lunch along with some base rock that I am not in love with. Still working out the lilly pipes for the overflow and return on the sump. What is everyone else using as bulkheads for these little tanks?

#14
MGDMIRAGE

MGDMIRAGE

    Land Loather

  • Members
  • 3,119 posts
  • Joined 19 Feb 2009
  • Spokane, Washington
Cool Idea but the plastic on that thing is terrible, its like CD case plastic. Even acrylic cleaners will scratch it up bad.

#15
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID

Cool Idea but the plastic on that thing is terrible, its like CD case plastic. Even acrylic cleaners will scratch it up bad.

Yeah I agree but it's such a small water volume I'll just wipe the plastic off during water changes with a soft towel.

#16
Cintax

Cintax

    Canadian Reefer

  • Members
  • 900 posts
  • Joined 05 Jul 2011
  • Ontario, Canada
I have one of these, my brother scratched it with the lens of his camera trying to take a macro shot. :P But in reality, its an excellent tool for proof of concept as jnam stated. If successful, it would take no effort to swap this out for a glass version.

#17
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID
And if it crashes well then I am out 14$ Plus I plan on cutting into the plastic (much easier than glass). Lets call it a mock up shall we and move on.

Edited by jnam, 14 March 2012 - 11:28 AM.


#18
Paigee

Paigee

    Nano Reefer

  • Members
  • 1,317 posts
  • Joined 24 Jun 2011
  • Vancouver, Canada
Interesting! So do you plan on just stocking with hitchhikers (I assume that is what you alluded to by the "ninjas"?)

#19
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID
My stocking plans shall remain secretive for now...

PICTURES

Posted Image
Dont know how I feel yet about the rocks.

Posted Image
A little closer.

Still waiting on the LEDs for the lighting. And Yes it isnt level as it is not in its final resting place yet.

Edited by jnam, 15 March 2012 - 10:45 AM.


#20
MetaTank

MetaTank

    Mmmmm....Cookies!!

  • Members
  • 561 posts
  • Joined 27 Nov 2011
  • Somewhere between the Ocean and the Mountains of SoCal
Sweeet! I thought about buying that tank like 5 times, but can't get over the plastic...Good deal though, looks pretty cool all set up, can you fit a decent amount of stuff in the drawer?(thats a drawer, right?)

Is the stand not quite level? Looks like the water level is a little lower on the right side.

Always Tanking
>^..^<
Meta


Meta's DoubleVision Picotope Paradise


#21
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID

Sweeet! I thought about buying that tank like 5 times, but can't get over the plastic...Good deal though, looks pretty cool all set up, can you fit a decent amount of stuff in the drawer?(thats a drawer, right?)

Is the stand not quite level? Looks like the water level is a little lower on the right side.


Its not the actual stand that is going on just a little end table that is leaning from the weight of the water. The drawer is a joke but it is almost exactly the sized of a 16x2 LCD display and will hide my arduino stuff perfectly

#22
MetaTank

MetaTank

    Mmmmm....Cookies!!

  • Members
  • 561 posts
  • Joined 27 Nov 2011
  • Somewhere between the Ocean and the Mountains of SoCal
Well, the the drawer is going to fit your arduino stuff perfecctly, it's not a joke, it's useful! Haha...Anyway, looking great so far!

Always Tanking
>^..^<
Meta


Meta's DoubleVision Picotope Paradise


#23
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID
A little snag, the RB LEDs I ordered happened to be white instead of blue... Dang lighting crap.
Got all the parts in for my controller and I will get this all wired up and coded ASAP like.

#24
jnam

jnam

    Nano Reefer

  • Members
  • 348 posts
  • Joined 17 Mar 2009
  • Nampa, ID

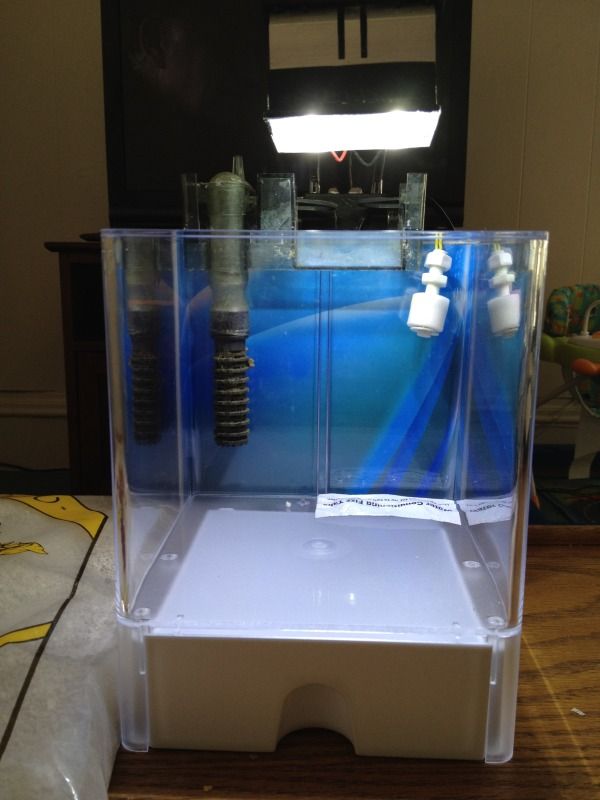

Got the LEDs in and hooked up

Sorry for the poor white balance on the iPhone shot

Posted Image

Thats at 20% roughly power

#25
NanoCuber1

NanoCuber1

    Nano Reefer

  • Members
  • 57 posts
  • Joined 01 Nov 2011

Got the LEDs in and hooked up

Sorry for the poor white balance on the iPhone shot

Posted Image

Thats at 20% roughly power


sweeeet! will follow. can we get a stocking list?
