tunze 9002 skimmer... again


  • Please log in to reply
69 replies to this topic

#51
briansbelle

briansbelle

    briansbelle

  • Members
  • 1,335 posts
  • Joined 06 Sep 2009
  • heath ohio

As long as the background music is the song from office space! :P
My feedback thread
http://www.nano-reef...p;#entry3954003

12g long-

Freshwater

11.4g mr aqua freshwater planted
Seiyru stone
Ada aquasoil
100w titanium heater
Eheim.2211 filter
lily pipes
fluv mini Co2 setup.
Glass bell diffuser

#52
GTi

GTi

    Nano Reefer

  • Members
  • 1,542 posts
  • Joined 14 Sep 2011
  • Michigan

so i did the airline mod for this skimmer, and i have to say... it works WORSE than before. i really just want to break this thing and throw it away. now its not even making any foam at all.

Is the air line trapped or kinked? Is it bubbling but not foaming?

I had a bit of trouble getting mine going but after the airline mod, it was easier to dial in.

It's all about water level and air flow.

Good luck!


Posted Image

This is where I keep the bubbles set. Almost halfway up the tube. Where the dry bubbles barely overflow into the collection cup. I'm still trying to figure out the optimal level. If anyone has a better idea I would love to know.

That's where I have mine set - any less and it doesn't collect anything, much more and it needs emptying daily and is only lightly coloured skimmate.

#53
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
The actual "working " bubbles are at the base of the skimmer cup. It slowly fills the tube. It takes time to build up. Higher bubble height gives a wet skimmate, lower bubble heights gives a dryer thicker skimmate.

Posted Image


Posted Image


#54
Fluffeh

Fluffeh

    Nano Reefer

  • Members
  • 1,924 posts
  • Joined 02 Nov 2010
i dont think you understand, it doesn't make any bubbles in the funnel. im going to make a video and you'll see how worthless this is

i really regret doing this 'airline mod that makes the skimmer so much better' - it broke it!

#55
convict2161

convict2161

    Nano Reefer

  • Members
  • 140 posts
  • Joined 21 Jan 2012
  • New York
You checked the valve? No leaks? No kinks? What type of valve did you use? How much airline hose do you have(slack)?

It should be making bubbles without a doubt. I'd like to see the video and also the setup. Also is the motor seated correctly in the housing? I just don't see the mod breaking the skimmer. And you can always go back to stock. The mod is VERY staright forward and shouldn't break the skimmer.

Please post video. And show set up an valve.

#56
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
The video shows a lot of bubbles being made. It seems the Venturi is working. I'm think the water height is too low. I've been going back and forth on the PM.

Your inbox is full Fluffeh.

Posted Image


Posted Image


#57
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
I slowed down my bubble production to try get a thicker darker skimmate. My working bubbles are just below the collection cup. Less water coming out so hopefully more stable salinity and water height. Don't have an ATO yet. This is about a days worth.

Posted Image

Edited by Singlefin, 11 March 2012 - 12:20 PM.

Posted Image


Posted Image


#58
shaneandjohn

shaneandjohn

    Father and Son

  • Members
  • 501 posts
  • Joined 08 Jan 2011
  • Puyallup Washington
A consistent water level is the key to this skimmer. Any evap will greatly affect the skimmers performance. Get yourself an ATO and then judge the skimmer.
Trust me, I went, thru the same thing.
Shane and John
Father and Son

35 Gallon Custom Built AIO, and Custom Stand, Kessil A350 Tuna Blue, Cadlights PLS50 Elite Skimmer,2 IM Media Reactors,InTank Media rack and 2 MP-10's for flow. Tunze ATO. Star-Board Bottom.
Livestock is mostly LPS and Chalices with a 6 year old pair of B/W Clowns.
Set up on 5-16-14

#59
convict2161

convict2161

    Nano Reefer

  • Members
  • 140 posts
  • Joined 21 Jan 2012
  • New York
Hey bro things have been crazy at the firehouse I don't want you thinking I'm ignoring you. My shift is over at 7. When I get home I'll watch the vid and PM you. We'll figure this out I promise.

#60
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
Where are you stationed?

Posted Image


Posted Image


#61
Jtotheb

Jtotheb

    Nano Reefer

  • Members
  • 19 posts
  • Joined 24 Feb 2011
Shot in the dark. When I did the airline mod for some reason I thought the line ran through the circle cut out. Which then creates a very nice kink that you can't see when the pump is put in place. I tossed out the stock air line which is very "bendable" ( sorry, it's late and can't think of better word). The stuff I got from my lfs was black but much more stiff hence more easily kinked. I either swiveled the top of pump piece around and or just ran the line up the open area next to circle cut out. Ran like a champ then.
I've had a 9002 in my bc29 for about three years now and it took me several months of screwing with it before I got it dialed in. But once it was, it's been great. It pulls out Singlefin's #45 pic amount on my heavily stocked bc29 every couple days. If you can get it dialed in, it can be worth it's weight in gold. Just my experience and maybe some hope for you.

Other things that gave me the problems you are having:
-Water in clear elbow and or tubing that connects pump to line. Just pull it apart and physically blow out water. Put back together.
-Snail or garbage blocking up pump inlet. Disassemble and clean pump.

Just my experiences.

#62
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
Nice. It can be a pain to tune until you figure it out. It's a pretty basic design. Once you understand it and all the variable that can screw it up it's pretty easy. Assuming you don't have any defective parts. Thanks for sharing. I'm sure this thread will help people set their skimmers up. Maybe even a few years down the road. I know I've read some pretty old threads theat have been helpful.

Posted Image


Posted Image


#63
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011

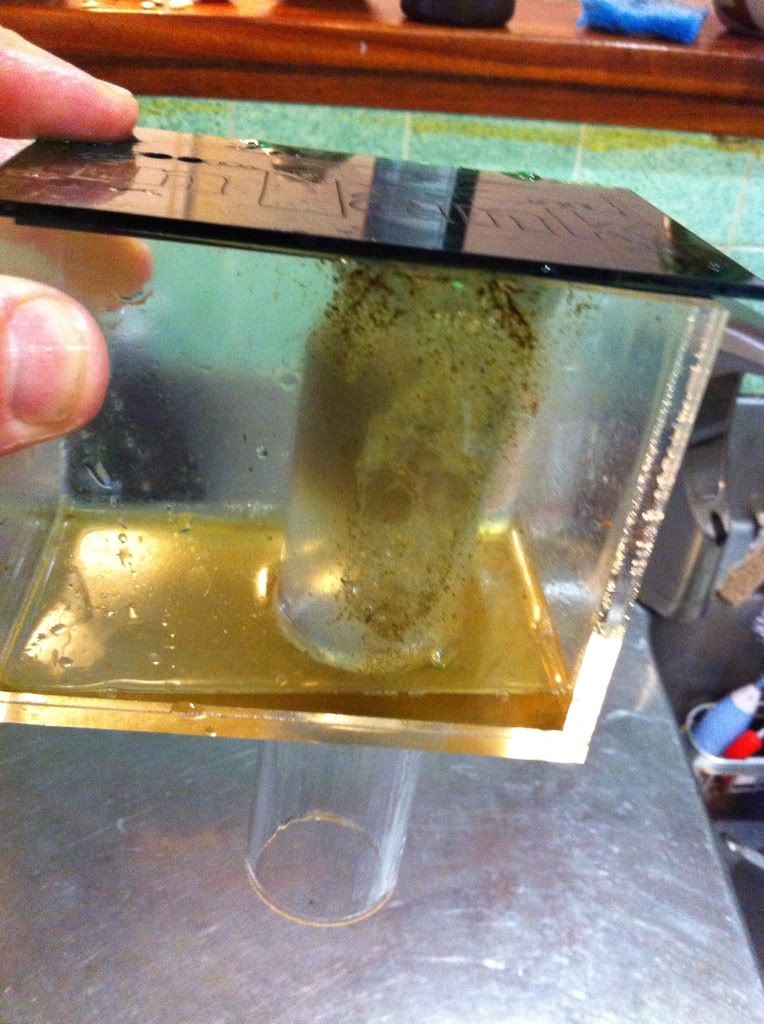

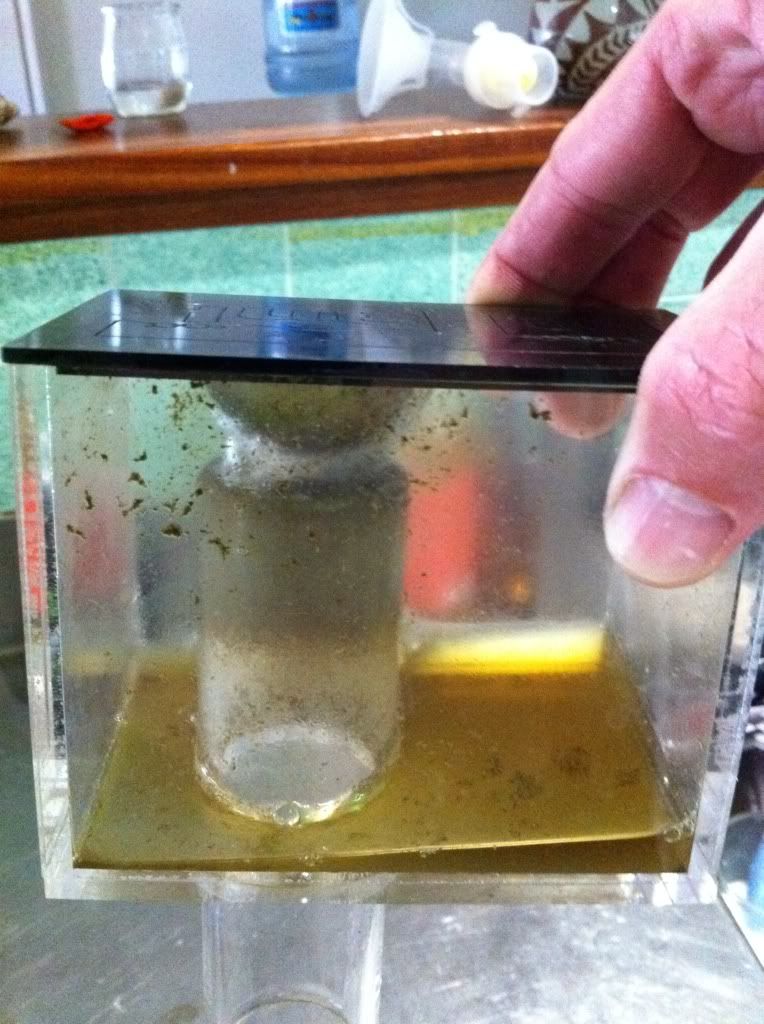

This is about three days of skimmate. Turned the bubbles down to try produce a dryer thicker skimmate. Notice all the bits stuck on the side and floating.

Posted Image

Posted Image


Posted Image


#64
2 Dogfish

2 Dogfish

    Nano Reefer

  • Members
  • 33 posts
  • Joined 24 May 2012
  • Northern Utah
I am new to the forum but just wanted to add that I was having the same issues and this really helped. I did the mod and it did the trick as before I was making too large of an air adjustment each time. All your comments really helped. Last night I got a nice frothy skim. Next step will be to add an ATO.

I also did something else. I have StevieT's media basket in my BC 29. The problem that I was having was that I had to add so much water to get the level right for the Tunze to work that it was starting to overflow from the front of the tank into the rear chambers and I was getting water creeping around the top of the rim.

Since the StevieT skimmer cup rests on top of the water director of the media basket I trimmed the raised channel piece of the water director to allow the skimmer cup to rest flat on top of the basket instead of the channel part (hope that makes sense). This allowed me to lower the Tunze in chamber two by~ 3/8 inch so I do not have to raise my water level quiet as high.

Edited by 2 Dogfish, 17 June 2012 - 06:43 AM.


#65
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
Right on. Welcome to the forum and addiction. I also cut my water deflector. Not just the vertical piece but also the horizontal piece with all the holes in it. The water flow would never make it to the end so it didn't matter. It allowed me to drop the skimmer and water height enough to hbe the water level below the top of the media basket. Before the media basket walls were submerged. Now I'm sure it is working better because it isolates the water flowing into the basket only. Glad this helped.

Posted Image


Posted Image


#66
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
Posted Image

Posted Image


Posted Image


#67
2 Dogfish

2 Dogfish

    Nano Reefer

  • Members
  • 33 posts
  • Joined 24 May 2012
  • Northern Utah

Posted Image


Thanks for the welcome Singlefin! Yea I set up the tank 4 years but never took the time to learn enough to mak the tank great ....at least I hope I can make it great ;)

Separate noob to the forum question....what is he best way to track threads I have replied to. Hate to miss a question posted by another person that was directed to me.

#68
Isaac5981

Isaac5981

    Nano Reefer

  • Members
  • 48 posts
  • Joined 04 Jun 2012
Separate noob to the forum question....what is he best way to track threads I have replied to. Hate to miss a question posted by another person that was directed to me.
[/quote]

At the top of the page there is an options tab to click on. Just above the first post one the page. Click on it and you can track the thread among other things.

Isaac

#69
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,239 posts
  • Joined 12 Jul 2011
click on options in top right above the posts.. you can track topics with daily weekly or instant email notifications.

Posted Image


Posted Image


#70
2 Dogfish

2 Dogfish

    Nano Reefer

  • Members
  • 33 posts
  • Joined 24 May 2012
  • Northern Utah
Thanks Isaac and Singlefin... I R smarter now
