#176
RK_tek

RK_tek

    Nano Reefer

  • Members
  • 610 posts
  • Joined 13 Dec 2010
  • JXN, MS

I'm thinking about adding some OCWs to my 12RB 6 CW 6 NW setup for my 27g. I'm trying to decide if I should use 3 with wider optics or 5 with narrower optics. They will be in a line down the center of the tank (32x14x14) any advice? Also what drivers are being used on these? Invectronics? I currently run 2 meanwells of my Typhon but have the other two channels open so I can drive these separately. I'm really looking at these bc I feel that the tank is lacking a lot of spectrum for coral growth. Most of my corals come from halide setups an tend to lose coloration unet my LEDs. Mostly just fading, not browning or dying.

http://www.nano-reef...-3#entry4314959

My DIY rimless 25g with LEDs before they were cool


#177
Milad LEDGroupBuy.com

Milad LEDGroupBuy.com

    LED Police

  • Sponsor
  • 2,314 posts
  • Joined 10 Jan 2011
  • St Louis

I'm thinking about adding some OCWs to my 12RB 6 CW 6 NW setup for my 27g. I'm trying to decide if I should use 3 with wider optics or 5 with narrower optics. They will be in a line down the center of the tank (32x14x14) any advice? Also what drivers are being used on these? Invectronics? I currently run 2 meanwells of my Typhon but have the other two channels open so I can drive these separately. I'm really looking at these bc I feel that the tank is lacking a lot of spectrum for coral growth. Most of my corals come from halide setups an tend to lose coloration unet my LEDs. Mostly just fading, not browning or dying.


how high are you hanging the fixture? I would probably do 4 with 90 degree optics. You want to run them 500mA or lower to make sure you dont overheat them so any driver that is able to do this work, of course we like the Inventroincs.

#178
RK_tek

RK_tek

    Nano Reefer

  • Members
  • 610 posts
  • Joined 13 Dec 2010
  • JXN, MS

3829998[/url]']
how high are you hanging the fixture? I would probably do 4 with 90 degree optics. You want to run them 500mA or lower to make sure you dont overheat them so any driver that is able to do this work, of course we like the Inventroincs.


To maintain symmetry I will probably use 5, of course I have the option to dim them as needed. What invectronics driver would you recommend? I have not used them before. Is the maxcurrent adjustable?

PS the fixture is approximately 8" above the surface. LEDs are in 6 groups of 4 on positionable heads.
Posted Image

Edited by RK_tek, 13 April 2012 - 04:17 PM.

http://www.nano-reef...-3#entry4314959

My DIY rimless 25g with LEDs before they were cool


#179
dan55fordviolin

dan55fordviolin

    Nano Reefer

  • Members
  • 160 posts
  • Joined 04 May 2009
  • Downey, CA

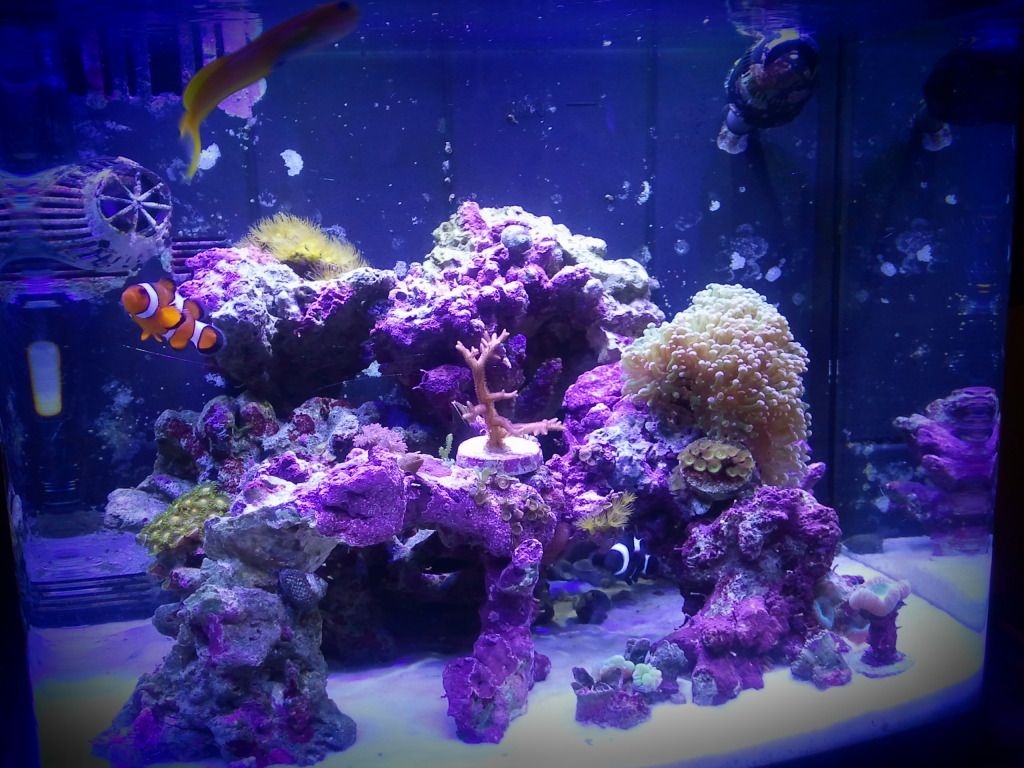

Posted Image
Driver 1 9 CREE XP-G R5 Cool White LED Running at 45%
Driver 2 6 CREE XT-E Royal Blue LED + 3 Violet UV 3W LED Running at 65%
This picture was taking on my Samsung Galaxy under the vintage setting but this is what the color looks like in person.

Edited by dan55fordviolin, 13 April 2012 - 06:44 PM.


#180
lil_man72

lil_man72

    Nano Reefer

  • Members
  • 42 posts
  • Joined 06 May 2007
  • kcmo
i'm planning on building one of these for my 57g illuminata.
what do you guys suggest?
i'm planning on using the makers heatsink kit, dim 4 and the leds are a ? right now.
how long should my heatsink be for a 36" tank? i'm thinking 24"
should i just use the 3ups and ocw on this?
i also want moonlights, what's the best way to go about this?
how many drivers would i need and which ones?

#181
devmasa

devmasa

    Nano Reefer

  • Members
  • 381 posts
  • Joined 01 Jan 2008
  • Los Angeles

To maintain symmetry I will probably use 5, of course I have the option to dim them as needed. What invectronics driver would you recommend? I have not used them before. Is the maxcurrent adjustable?

PS the fixture is approximately 8" above the surface. LEDs are in 6 groups of 4 on positionable heads.
Posted Image


Really neat !
Are those cpu heatsinks ?
How do you adjust those heads? I mean what kind of hinge/socket are you using ?
and are the four leds on each cluster on a single driver ?

#182
Milad LEDGroupBuy.com

Milad LEDGroupBuy.com

    LED Police

  • Sponsor
  • 2,314 posts
  • Joined 10 Jan 2011
  • St Louis

i'm planning on building one of these for my 57g illuminata.
what do you guys suggest?
i'm planning on using the makers heatsink kit, dim 4 and the leds are a ? right now.
how long should my heatsink be for a 36" tank? i'm thinking 24"
should i just use the 3ups and ocw on this?
i also want moonlights, what's the best way to go about this?
how many drivers would i need and which ones?


24" MakersLED Heatsink
some thermal grease
12 3UPs
4-6 OCW
3x NW for Moonlights
DIM4

Drivers would be:
40w 700mA 12x Royal Blue
40w 700mA 12x Royal Blue
40w 700mA 12x Netural White
40w 700mA up to 6x OCW

DIM4 would need 5A power supply so you can run the fans on it and the moonlights.
You can get the relays to shut power completely off on the drivers/leds or just use timers

Edited by Milad LEDGroupBuy.com, 14 April 2012 - 04:49 PM.


#183
lil_man72

lil_man72

    Nano Reefer

  • Members
  • 42 posts
  • Joined 06 May 2007
  • kcmo

24" MakersLED Heatsink
some thermal grease
12 3UPs
4-6 OCW
3x NW for Moonlights
DIM4

Drivers would be:
40w 700mA 12x Royal Blue
40w 700mA 12x Royal Blue
40w 700mA 12x Netural White
40w 700mA up to 6x OCW

DIM4 would need 5A power supply so you can run the fans on it and the moonlights.
You can get the relays to shut power completely off on the drivers/leds or just use timers

thanks, this is close to what i was thinking but wanted to be sure.
now to figure up how much this is going to cost me.

#184
RK_tek

RK_tek

    Nano Reefer

  • Members
  • 610 posts
  • Joined 13 Dec 2010
  • JXN, MS

3830620[/url]']
Really neat !
Are those cpu heatsinks ?
How do you adjust those heads? I mean what kind of hinge/socket are you using ?
and are the four leds on each cluster on a single driver ?


The heatsinks are from ledsupply. The blues are all on one driver and the whites are on another. Each head has 6 wires on quick connects. 2 for each color and 2 for fans. The sockets are from floor lamps typically sold at Wally world, targèt, HD, lowes etc. the lamps have 3 sockets each. I got mine from a lamp that had the cord cut and one I found in the dumpster

http://www.nano-reef...-3#entry4314959

My DIY rimless 25g with LEDs before they were cool


#185
jamierk

jamierk

    Nano Reefer

  • Members
  • 13 posts
  • Joined 22 Feb 2009
Hey guys

Trying to decide on my LED setup for a RSM 130D (going in the place where the existing lights are). I have 2 heat sinks which i got from another reefer, predrilled for 20mm stars in a 3 rows of 4 leds (heat sinks are 5" long by 4" wide). I've seen other LED builds on RSMs which look pretty good, but with the heatsink so close to the water (probably only 3" off the surface) i'm trying to minimise spotlighting and maximise coverage (LEDs are only in the central quarter of the tank, and spread is difficult to reach high up the back.

I have two designs planned:

Posted Image

First one is a little cheaper to setup obviously, but i am not sure on the spotlighting effects. The second option costs a bit more, but i'm concerned about this being too many LEDs running on the heatsinks. Any thoughts? If someone has some of the 3-ups wired up, could they point towards some photos of them over a tank?

Thanks

Jamie

#186
Paul_B

Paul_B

    Nano Reefer

  • Members
  • 7 posts
  • Joined 15 Apr 2012
  • Melbourne, Australia
Hi Guys,

I have a Red Sea Max 130 that I want to convert to LED. I want your suggestions on my LED selections.
14 Cree XP-E Cool whites
8 Cree XP-E Royal Blue
6 Cree XP-E Blue
4 True Violet
2 Ocean coral whites.

The cool whites, blues, true violets & ocw will be driven by seperate channels of a DIM4

Cheers

Paul

#187
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 20,339 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL
Milad, found something you can add to your OP

Posted Image

Shows the main parts of photoshynthetic absorption and how important each is, and what the wavelength peak is.

#188
GothBoy

GothBoy

    Nano Reefer

  • Members
  • 25 posts
  • Joined 01 Apr 2010

Milad, found something you can add to your OP

Posted Image

Shows the main parts of photoshynthetic absorption and how important each is, and what the wavelength peak is.


This was EXACTLY what I've been after! Good work :D

#189
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 20,339 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL

This was EXACTLY what I've been after! Good work :D

Don't thank me, thank the internet, all I did was spend a whole lot of time surfing lol.

#190
Giga

Giga

    Nano Reefer

  • Members
  • 2,983 posts
  • Joined 17 Aug 2007
  • Virginia Beach, VA
I'll play
Posted Image

660,450,420,470, and 5100k 50w bridgelux and 500nm but not in the pic
Posted Image

Mangrove Forest-Retired      Black Lagoon-Retired     Guide to growing mangroves


Bonsai                                                                    Red & Black                                                                       The Drop Off




#191
Deckoz2302

Deckoz2302

    Stony Reefer

  • Members
  • 6,087 posts
  • Joined 29 Aug 2011
  • Raleigh, North Carolina
That BLux diode is ....word


#192
Tyron

Tyron

    Nano Reefer

  • Members
  • 391 posts
  • Joined 19 Jun 2010
  • South Carolina, soon to be Richmond VA

I'll play
Posted Image

660,450,420,470, and 5100k 50w bridgelux and 500nm but not in the pic
Posted Image

Any pictures over your tank

#193
Giga

Giga

    Nano Reefer

  • Members
  • 2,983 posts
  • Joined 17 Aug 2007
  • Virginia Beach, VA
Not yet as its not done yet but follow my thread and it'll be up shortly

Mangrove Forest-Retired      Black Lagoon-Retired     Guide to growing mangroves


Bonsai                                                                    Red & Black                                                                       The Drop Off




#194
dan55fordviolin

dan55fordviolin

    Nano Reefer

  • Members
  • 160 posts
  • Joined 04 May 2009
  • Downey, CA

Milad, found something you can add to your OP

Posted Image

Shows the main parts of photoshynthetic absorption and how important each is, and what the wavelength peak is.


This helped me out too.How to make coral for colorful.

#195
Milad LEDGroupBuy.com

Milad LEDGroupBuy.com

    LED Police

  • Sponsor
  • 2,314 posts
  • Joined 10 Jan 2011
  • St Louis
Ocean Coral Whites are in stock, and everyone's got out the door today! I better see some build threads.

#196
Singlefin

Singlefin

    Nano Reefer

  • Members
  • 1,235 posts
  • Joined 12 Jul 2011
Are we still waiting on the makers heatsink? Any progress or delays?

Posted Image


Posted Image


#197
Milad LEDGroupBuy.com

Milad LEDGroupBuy.com

    LED Police

  • Sponsor
  • 2,314 posts
  • Joined 10 Jan 2011
  • St Louis

Are we still waiting on the makers heatsink? Any progress or delays?


MakersLED heatsink is still on schedule. May 10th is what its looking like.

#198
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 20,339 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL
You've probably got a billion orders on backlog, right? I'd imagine everyone would want a piece of that. B)

#199
Milad LEDGroupBuy.com

Milad LEDGroupBuy.com

    LED Police

  • Sponsor
  • 2,314 posts
  • Joined 10 Jan 2011
  • St Louis

You've probably got a billion orders on backlog, right? I'd imagine everyone would want a piece of that. B)


Not "alot" but a decent amount.
I thought they might run out but we have plenty

The MakersLED on the other hand are about to run out which sucks because their production time is 30 days from start to finish so now we gota get a new production line going.

#200
chrssprngs

chrssprngs

    Nano Reefer

  • Members
  • 8,493 posts
  • Joined 20 Feb 2010

Not "alot" but a decent amount.
I thought they might run out but we have plenty

The MakersLED on the other hand are about to run out which sucks because their production time is 30 days from start to finish so now we gota get a new production line going.

About to run out due to incoming orders?


Existing pre-orders will be fullfilled with first production run?

Will 4 3ups run at 500ma by the DIM-4 be plenty on a BC14?
