Ulver's Biocube 14 w/ LEDs


  • Please log in to reply
14 replies to this topic

#1
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004

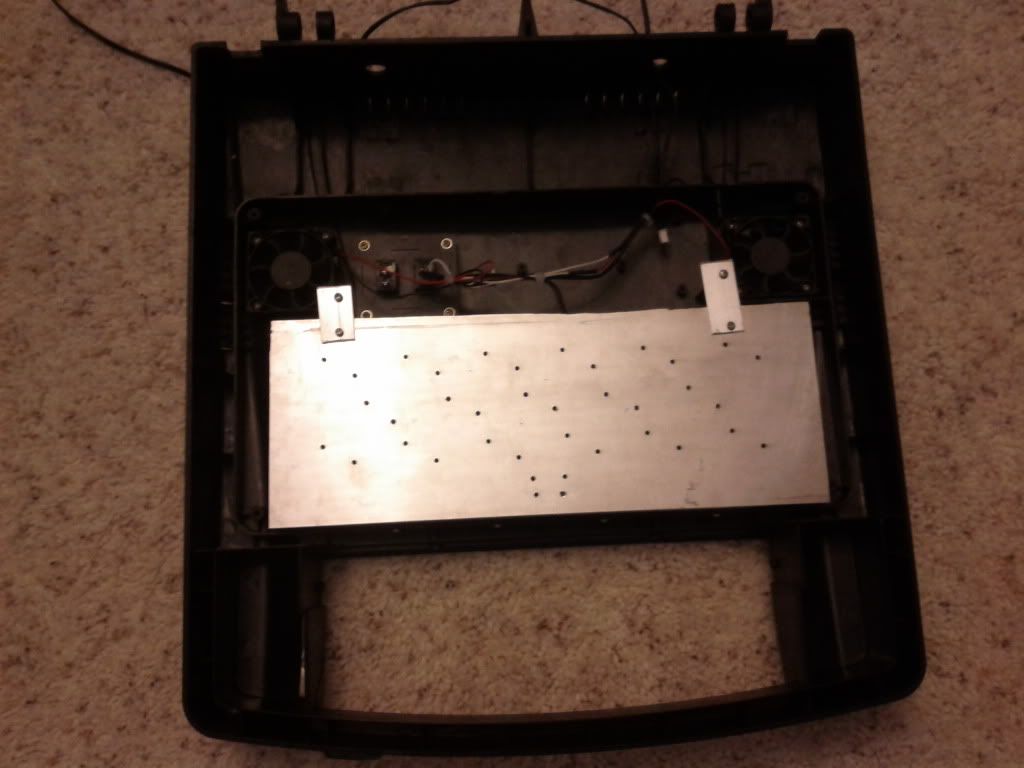

I ended up getting a biocube 14 on clearance at Petsmart for $119. Right away, I knew I was going to do LEDs again. I ordered a heatsink from nanotuners, but after waiting a month with no heatsink (3-5 day delay listed on their website is a joke) and very little communication from them, I said screw it and dug up my old heatsink I used on my 2.5 gallon....and what do ya know?? It fits!! The heatsink measures 12" x 5". The heatsink was already pre-drilled for 12 LEDs with 2 rows of 6. I wanted to do more, so today I drilled and tapped more holes to put in 6 more LEDs (3 neutral white and 3 more royal blues). I already have 6 cool whites and 6 royal blues. I figure I play around with some neutral whites. Excuse 2 of the holes. I ended up breaking the tap on my last hole! So I had to re-drill/tap.

Anywho, after messing around, I figured a way to mount the heat sink in the hood. It's actually very secure. You can't see from the pics but the heaksink is screwed down in the front. I'll have to post some pics of that later. I also mounted a 80mm fan on top of the heatsink. I'm also using the stock fans to blow out while the large fan blows in. All the fans are wired to the stock light switch. Here are a couple of pics. I'll get more later as I will wire up the LEDs in the next couple of days.

Posted Image
Posted Image

#2
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004
I got the LEDs installed. I have 6 cool whites, 9 royal blues, and 3 neutral whites. Here's some pics.

Posted Image

Posted Image

Posted Image

#3
knoxvegas

knoxvegas

    Nano Reefer

  • Members
  • 416 posts
  • Joined 04 Apr 2006
  • Knoxville, TN
Nice. What kind of drivers are you using and what is the LED config per driver?

#4
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004

Nice. What kind of drivers are you using and what is the LED config per driver?


I'm using buckpucks, so 6 LEDs per driver. I have the 6 cool whites on one, 6 royal blues on the 2nd, and 3 royal blues and 3 neutral whites on the third.

#5
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004
I got the tank going, here's a pic, it's a bad cellphone pic. The pic looks way too blue and hazy, but you get the idea. When I find my camera, I'll get a better one.

Posted Image

#6
REEFERBOY

REEFERBOY

    Nano Reefer

  • Members
  • 271 posts
  • Joined 25 Jul 2007
looks awesome nice n full
my bc29 thread lots of pics!!!!

http://www.nano-reef...?...29044&st=40

#7
Coastie5685

Coastie5685

    Nano Reefer

  • Members
  • 131 posts
  • Joined 25 Jan 2009
  • Pembroke Pines, FL
Looks sick dude.

The picture does make it a lot more blue. The hood looks awesome though man. You did a real clean job.

Add some more colorful corals though man. Reds, greens. Use those LED to full potential in making colors POP in corals.

Frag some of that candy cane and mow some GSP lol. Open up more real estate for other corals.
Semper Paratus...
Coastie5685 BC29 thread

#8
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004
Yeah! You're right coastie. I really like my candy cane though! I got that thing with only 2 heads, who knows how many I have now. It's like my baby that I've watched grow up. But I guess it'll have to move out eventually. Thanks for the suggestions. :)

#9
rO.oster

rO.oster

    Nano Reefer

  • Members
  • 919 posts
  • Joined 04 May 2010
  • Little Rock
wow... tell us about your cycle. im dieing to hear.

#10
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004
There wasn't a cycle. I used new live sand and all my live rock/livestock came from my 10 month old established 16 gallon.

#11
Trombles

Trombles

    Nano Reefer

  • Members
  • 1 posts
  • Joined 30 Jan 2011
The live rock was from an established tank, so it doesn't need the same process as that of a tank with new sand and new rock. It's really just like he did a large water change. I've seen the tank in person and it looks sick. :)

#12
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004
Recently I got the new moonlight kit from rapidled. You can see the two moonlights on the top. It was easy to do and looks great for $14. Here's a pic:

Posted Image

Other than that, the tank is doing great, I also hooked up a chiller that I'll get pics up soon. It just one of those aquaeuro cl-85 peltier chillers. We'll see how it does, I haven't got to really test it out yet. I don't expect a lot out of it, from reviews it seems to be either a hit or miss.

#13
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004
Another pic:

Posted Image

Here is the inlet for my chiller. The outlet just comes out the back along with the other cords. I'm using the stock pump for my chiller and I have it in chamber 1.

Posted Image

#14
rO.oster

rO.oster

    Nano Reefer

  • Members
  • 919 posts
  • Joined 04 May 2010
  • Little Rock
lookin great, the LED's really make it. Didnt know you basically made a tank transfer, sounded like you started from new. I really need to get on my own LED project.

#15
ulver982

ulver982

    Nano Reefer

  • Members
  • 586 posts
  • Joined 17 Nov 2004

lookin great, the LED's really make it. Didnt know you basically made a tank transfer, sounded like you started from new. I really need to get on my own LED project.


Thanks! Yeah, I didn't make that clear, it did seem like I was starting from scratch. This is my third time using LEDs on a tank, and I love em.
