Sammy's 40B Build


  • Please log in to reply
300 replies to this topic

#1
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico

Hi Guys! I'm in the process of building a new tank. I moved to a new apartment a few months back and one of the things I wanted was a bigger tank. Finally after buying all the apartment stuff I have started to buy new tank equipment. I wanted to build a bigger cube but now that I have my living room set like I want, I don't have space for a bigger cube. So my current tank is 17.5" x 17.5" footprint and the chiller is in the back. The tank is around 11" apart from the wall and I still have some room in the front that I could use without looking weird. A 40 breeder is 18" wide so is no big change and if I set it "peninsula" style I can use that lost space. I've never though of a 40 breeder to be use in this layout but that's what works for me right now. After all the short side will be facing were you stand now in front of my current tank so it will feel like looking the same but is long from the sides which is good cause at one side I have my loveseat and the other is open to the hall.

I started buying some stuff. Will use some equipment from the current tank. Enough talking lets go to the interesting part.


  • Equipment:
    AGA 40breeder tank
    DIY wooden stand (laminated)
    DIY Acrylic sump
    Super Reef Octopus XP1000 SSS Skimmer (already have)
    Vortech MP10 (already have)
    Biopellets reactor (already have)
    Water blaster pump 3000 (700GPH)
    JBJ Nano Arctica chiller (already have)
    36 LED lamp (upgrade from current)

  • Livestock:
    Mainly SPS. Will transfer everything from my tank, add more rock and obviously continue to fill up
    Zoas
    Acans
    Some frogspawn, torch or hammer here and there

Some diagrams of the proposed layout:

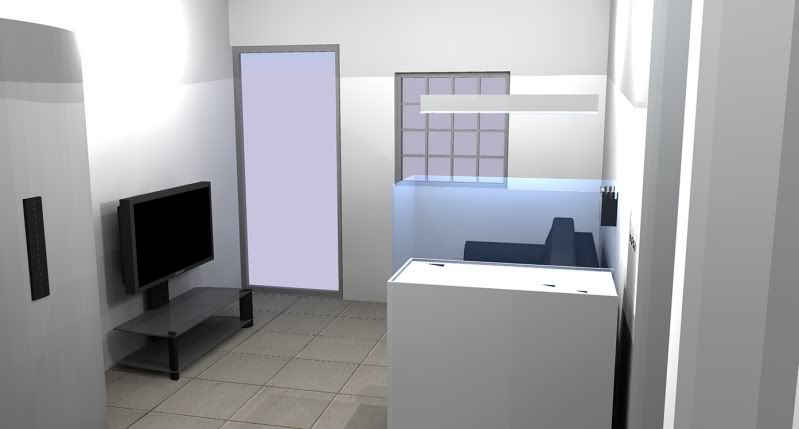

Livingroom
Posted Image
Posted Image
Posted Image

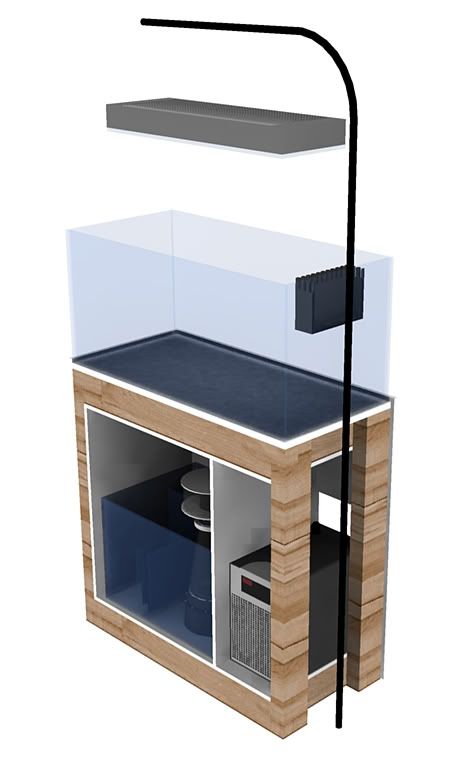

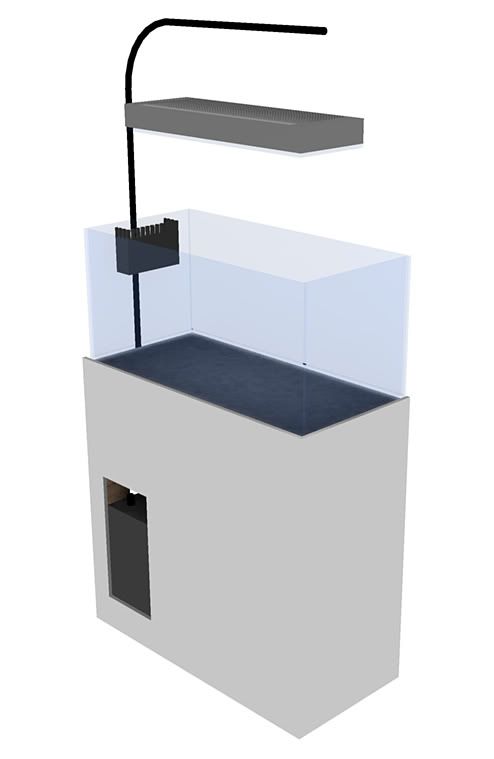

The Tank
Posted Image
Posted Image
Posted Image

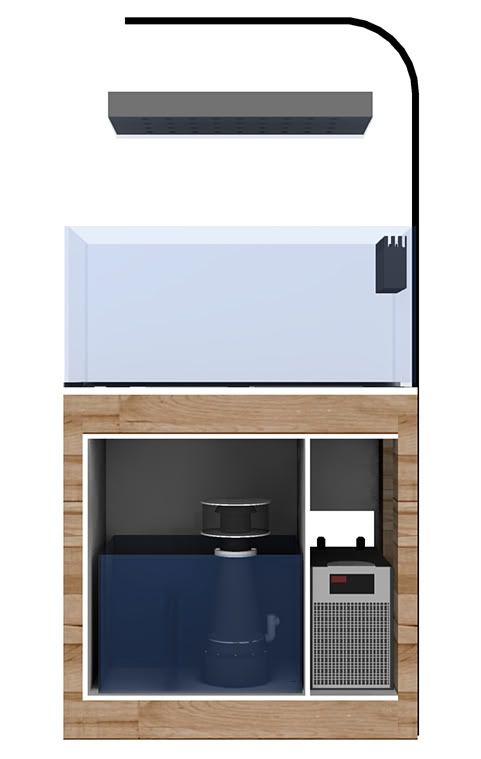

In these drawings the door is removed. It will be a whole removable piece, not small doors. As you can see, the chiller is inside the stand since I can't afford to have more equipment out of that footprint. The stand has a false wall to separate and isolate heat produce by the chiller to affect the water. The short side that faces the wall will be open for ventilation and the hole you see in the back faces the side of the couch (it still leaves enough space for good ventilation) Will use some fans as well to remove air from the stand. The sump has 3 gallon water reservoir for ATO. What I still haven't figured out is how to hang the lamp. I bought a 24" heatsink that weight a ton. Don't know if a single EMT bent tube will hold from the back. I'd like to have a clean top so mounting legs will be the last option.

Comments, suggestions and thoughts are always welcome and very appreciated


#2
Dnic

Dnic

    Reefer

  • Members
  • 513 posts
  • Joined 15 Jul 2010
  • Memphis, TN
Awesome sketch ups, , looks very planned!

#3
Coastie

Coastie

    I miss that fish.

  • Members
  • 2,713 posts
  • Joined 03 Oct 2010
  • Louisville, KY
you definitely thought this out! I can't wait to see it!

#4
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Here some changes in my lamp design. The other day I saw here in NR a guy (don't remember the name) who made an LED lamp kinda like a Aquailumination and I really loved how it turned out so it inspired me. I actually love how the AI lamps look. Very clean and simple. So I changed my design to be AI'sh look. Heres the design. I'm ready to start building my lamp. I already have a 24" heatsink, 36 LEDs 2:1 ratio and have the tank. Stand will be built anytime soon as I have a few other pending works that have priority:

Posted Image
Posted Image
Posted Image

The LEDs will be now in a 3 group piece and will have a white acrylic cover with holes and a clear acrylic splash guard to protect the LEDs from the salty environment. The heatsink will be exposed and don't plan to run any fans as my current lamp runs very cool. Will test to make sure it really runs in the acceptable range but I hope I don't need them.

#5
_Mitch_

_Mitch_

    Nano Reefer

  • Members
  • 1,085 posts
  • Joined 19 Mar 2011
  • NY
Wow, awesome planning so far. Can't wait to see how this turns out!

Edited by _Mitch_, 23 April 2011 - 04:09 PM.

Posted Image

Check out my YouTube Channel


I use an MP10 just to mix new water...

ಠ_ಠ


#6
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Thanks Mitch! anyone have an idea how to either grind or remove a piece of a fin? I need to do this so I can make a hole for the hanging kit. Something like this:
Posted Image
I know with a CNC or milling should be a breeze but I don't have access to one or want to pay a lot for that. Is it possible with a router??

#7
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Just started my lamp! Some pics
Posted Image
Posted Image


The two LEDs in the middle are for moonlight. I bought a moonlight driver from rapidled. Run up to 4 LED's at 350mA

#8
ReefPHD

ReefPHD

    Nano Reefer

  • Members
  • 11 posts
  • Joined 04 Feb 2011
Looking impressive as always Sammy....
Why dont you try using a dremel m/c with a little grinder wheel to cut/remove some of the fin - should be failry easy to do, and since it probably won't be in view (?), you don't have to do a perfect job.

Sent you some emails, haven't heard back yet....let me know.


Omar

Edited by ClixWear, 27 April 2011 - 10:36 AM.

nano build coming soon!

#9
bensanders

bensanders

    engineered reefs

  • Members
  • 1,449 posts
  • Joined 16 Nov 2010
  • Austin, TX
I was going to suggest a Dremel as well
sandman's 40br
40br LED build
DIY Vortech Battery Backup

"I think it odd that a cephalopod would invent itself a god"

#10
ReefPHD

ReefPHD

    Nano Reefer

  • Members
  • 11 posts
  • Joined 04 Feb 2011
Another option might just be using a jigsaw, (if the blade can fit between the fins...??) ........if you look at my image- start from right to left though....use the blade in between the two fins to cut a vertical cut, as low as you can go---tip the blade as much as you can to make the cut easier...then have the blade perpendicular, to make a vertical cut - note the depth of the blade as you don't want to go too deep.
Finish off the cuts with a file to clean edges if required.

You've helped me with lots, hopefully I can return the favor a bit...with a few suggestions here..

Posted Imagelamp4.jpg

Edited by ClixWear, 27 April 2011 - 08:45 PM.

nano build coming soon!

#11
Rabidgerbil38

Rabidgerbil38

    The snozberries taste like snozberries..

  • Members
  • 600 posts
  • Joined 03 Mar 2011
  • North county SD
Build is looking great. If you know any places with a regular old end mill (most machine shops got one) it would be simple to modify the heatsink.

#12
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Thanks for the suggestion guys. I'm gonna check with a machine shop with a regular old mill like rabidgerbil said. I know one close to me and we'll see how it turns. I need to make this as clean as possible as the heatsink will be exposed. That's why I didn't used a dremel cause the grinding wheell will damage the other fins.

#13
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Let there be light!
Posted Image
Posted Image
right now it looks messy but just wanted to test. Also the acrylic cover will hide everything. This thing is BRIGHT!!!!

I used a piece of black electrical tape to test temp with an IR thermometer the closest to the LEDs possible and it runs @ ~125F with no fans. That's with the LEDs @ 100% power. Does that sound too hot to go away without fans?

#14
Jruberti

Jruberti

    Nano News

  • Members
  • 633 posts
  • Joined 10 Jul 2009
  • Middle Georgia
very impressive, subscribed :)

Edited by Jruberti, 01 May 2011 - 06:23 PM.


#15
gabe3eb

gabe3eb

    Hang It...

  • Premium Members
  • 1,411 posts
  • Joined 10 Dec 2001
  • Colorado Springs
So awesome. I love the light. I take it you are using NWs? Is the tank going to be rimless like in the mock-up or will it have the standard 40B rim?

#16
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico

So awesome. I love the light. I take it you are using NWs? Is the tank going to be rimless like in the mock-up or will it have the standard 40B rim?

Thanks. Yeah its NW LEDs. I have a regular 40b that got it as an exchange for an LED work (cost me around ($50) but don't know if I'm using that one or build my own as I'd love to be rimless. Don't know how safe it is to remove the rim from it as it is 1/4" glass. Making my own will cost me around $200 worth of beveled and flat polished 3/8" glass

#17
gabe3eb

gabe3eb

    Hang It...

  • Premium Members
  • 1,411 posts
  • Joined 10 Dec 2001
  • Colorado Springs

Thanks. Yeah its NW LEDs. I have a regular 40b that got it as an exchange for an LED work (cost me around ($50) but don't know if I'm using that one or build my own as I'd love to be rimless. Don't know how safe it is to remove the rim from it as it is 1/4" glass. Making my own will cost me around $200 worth of beveled and flat polished 3/8" glass


That seems like it would be really risky. I don't have much experience (aside from de-rimming a 10g aga that I never got wet), but people start to get nervous when you are talking about de-rimming much more than a 15g. Dunno if a 40b has been done before, but that's a lot of water on the floor if something goes wrong. Maybe you could add a glass euro-brace or something to give it a bit more stability? Might look clunky at that size though.

Or just make some more fixtures for people and use that money. :D

#18
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
yeah seems very risky to me. I'd rather sleep relax. I've seen some de-rimmed 40b here on NR and the guy measured if there was some bending and there actually was. Enough to scare me though. I can handle acrylic bends but not glass. I actually have some other build going right now but I'm saving for a summer trip :P need more customers :lol:

#19
gabe3eb

gabe3eb

    Hang It...

  • Premium Members
  • 1,411 posts
  • Joined 10 Dec 2001
  • Colorado Springs
Sammy, quick question. I'm doing some scheming/planning and was wondering what the dimensions for one of the 3 star led clusters was?

#20
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
This will help:
Posted Image

#21
gabe3eb

gabe3eb

    Hang It...

  • Premium Members
  • 1,411 posts
  • Joined 10 Dec 2001
  • Colorado Springs
Haha, yes indeed it does. Awesome. Thanks man.

#22
DaveFason

DaveFason

    Community Sponsor

  • Sponsor
  • 3,777 posts
  • Joined 22 Jan 2006
  • NC
Sammy,
Looking great! What optics are those? Where did you get them? They snap like xr?

-Dave


Check Your Order Status : https://docs.google....TRHE/edit#gid=0


#23
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Dave got those from rapidled (65 degree). They actually snap just like XRE to the LED package. Some of them may not snap firmly because there is a bigger solder blob in some and it can fell off easily. In my case at least 80% of them didn't need any glue

#24
bensanders

bensanders

    engineered reefs

  • Members
  • 1,449 posts
  • Joined 16 Nov 2010
  • Austin, TX
Yo Sammy, looking good.

I'm going to help myself to your AI "puck" idea and do my LEDs in groups of 3, hope you don't mind. How wide is that 24" heatsink? Is it the 4.25" or 5.37"?

Also, is there any way you can snap a photo of the fixture above the tank? I'd love to get an idea of how the coverage looks.

Thank you!

edit: I'm now assuming it's larger than 4.25" based on the LED group spacing. I'm guessing it's the 8.46" wide heatsink?

Edited by bensanders, 03 May 2011 - 01:11 PM.

sandman's 40br
40br LED build
DIY Vortech Battery Backup

"I think it odd that a cephalopod would invent itself a god"

#25
sammy113

sammy113

    Nano Reefer

  • Members
  • 2,083 posts
  • Joined 25 Dec 2006
  • Puerto Rico
Hi. The heatsink is the 8.4 profile from heatsinkusa. Went with this one cause using 3 led clusters was not the innitial idea. I still need to do some more work on the lamp. Hope to finish on tuesday. I still dont have the tank with me. Hopefully this weekend im going to be able to work on the stand and bring the tank from my parents' house
