One of the best DIY Led write ups I've seen to date. Good Job.

#27
andru24

andru24

    Nano Reefer

  • Members
  • 434 posts
  • Joined 24 Jan 2009
  • Fairfax, VA

did you ever get a picture of the light over the tank?

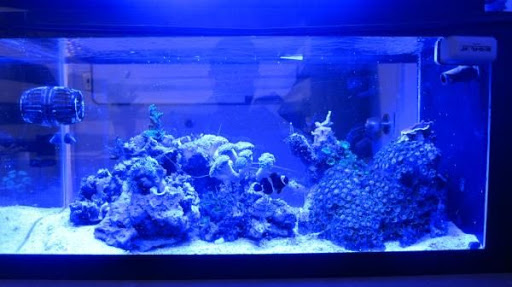

The camera battery died before I could get pictures with the whites on... But here are some pics with just the blues. It really make corals pop. The pictures don't do it justice.

Posted ImagePosted ImagePosted ImagePosted Image

Edited by andru24, 31 January 2011 - 04:54 PM.


#28
dekonstruktr

dekonstruktr

    i feel asleep

  • Members
  • 75 posts
  • Joined 06 Jan 2011
  • Oceanside, CA
Looks great! Awesome guide, I've just started researching these DIY led systems and this has been very helpful!

#29
andru24

andru24

    Nano Reefer

  • Members
  • 434 posts
  • Joined 24 Jan 2009
  • Fairfax, VA

Can you tell me what the driver output voltage is once it starts to flicker?



Hey Evil... I took everything home today, took it apart and put it back together this time doing more permanent soldering of all of the wire connections, then wire nuts over top all in a more legitimate project box from Radio Shack.

The flashing no longer occurs. Now when I dim it will dim nice and slowly then when it gets really low it will basically shut off (in actuality it's just barely lit). I am guessing this normal as it is basically the same as when the power adaptor isn't plugged in at all. I tested voltages and they go basically like this:

Royal blues (x 10):
Max @ ~37 volts (makes sense)
dims until around 28v then the voltage jumps to 24 volts and the lights go to their "shut off" mode (just barely lit)

Whites (x 8)
Max @ 28v
Dims to 22.5v then jumps to 20v and the lights go to super dim

Let me know if this seems normal or not. I am guessing the pot basically just shuts off all additional power from the adaptor at those points where the voltages jump.

#30
Llamaguy

Llamaguy

    Nano Reefer

  • Members
  • 645 posts
  • Joined 28 Dec 2005
  • Indianapolis, IN
:bowdown: I would LOVE two of these! Very clean and tidy DIY.

#31
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,839 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
Sounds like everything is working well now.

#32
andru24

andru24

    Nano Reefer

  • Members
  • 434 posts
  • Joined 24 Jan 2009
  • Fairfax, VA

Sounds like everything is working well now.



Is it possible to dim cleanly and evenly from 0% light up to 100%? Or are you pretty much always only going to be able to dim a certain subset of the range (40% - 90%)?

#33
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,839 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
There are limitations in the LED and the driver that will set how dim they can be set. LEDs have a minimum current to actually generate light. Meanwell ELN "D"s are supposed to dim down to 5%, but I think the practical limit is higher than that on those particular drivers. Linear dimming with buck drivers isn't easy below a certain point.

#34
NirvanaandTool

NirvanaandTool

    Predator Addict

  • Members
  • 840 posts
  • Joined 31 Aug 2008
  • South Jersey
Great write up! Thanks. Definitely bookmarking this for when I tackle my diy led light in a few weeks

-Ralph

Anglers, Scorpionfish & Mantis Shrimp, Oh my!
Neverending 90RR Build | 15G Angler Cube -> Retired | 34G Solana Reef -> Retired |




#35
andru24

andru24

    Nano Reefer

  • Members
  • 434 posts
  • Joined 24 Jan 2009
  • Fairfax, VA

There are limitations in the LED and the driver that will set how dim they can be set. LEDs have a minimum current to actually generate light. Meanwell ELN "D"s are supposed to dim down to 5%, but I think the practical limit is higher than that on those particular drivers. Linear dimming with buck drivers isn't easy below a certain point.



Yeah.. it dims awesome then it just hits a point where the LEDs bsically switch off, but are just barely lit. The point at which it switches off seems much higher than 5%.

Great write up! Thanks. Definitely bookmarking this for when I tackle my diy led light in a few weeks



Cool. Hope it helps.

#36
AFRobert568

AFRobert568

    Nano Reefer

  • Members
  • 305 posts
  • Joined 06 Dec 2009
  • Sacramento, Ca
This is probably the first LED guide that makes me feel I can do this. Is a multimeter the same thing as a voltmeter? My dad has a voltmeter, but I went back to your thread and noticed you said multimeter.

#37
Arkayology

Arkayology

    Just call me Indy

  • Premium Members
  • 6,507 posts
  • Joined 08 Oct 2009
  • Santa Barbara, Ca
I'm glad someone mad ea thread for me! lol


Archaeologists don't dig for dinosaurs


Arkayology's 40g Shallow Rimless April 2014 TOTM
60g SPS Cube
20h EssPeeEss Reef


Seller's Feedback


#38
WillWork4Frags

WillWork4Frags

    Nano Reefer

  • Members
  • 183 posts
  • Joined 08 Apr 2011
  • Temecula, CA
Thank you for the detailed and well illustrated DIY. I will be doing mine soon and your guide put my mind at ease.

Edited by WillWork4Frags, 05 June 2011 - 01:00 AM.


#39
karisma

karisma

    Nano Reefer

  • Members
  • 367 posts
  • Joined 08 May 2011
  • Canada
Awesome write up bud! Wish I ha this when making my fixture haha!

I just finished my pico lamp led fixture. Im curious what brand fixture you retro fitted the heatsink into there? Is it an odyssea?

DIY CREE LED PICO LAMP


Aqua illuminations Sol Nano

My pico build thread


MY AIO 10g REEF BUILD THREAD


#40
kleankord

kleankord

    Nano Reefer

  • Members
  • 55 posts
  • Joined 14 Sep 2010
great thread, thanks for posting.

#41
longbeachstateofmind

longbeachstateofmind

    Nano Reefer

  • Members
  • 236 posts
  • Joined 04 Jul 2011
  • Long beach, CA
Thank you for the write it, it cleared up a bunch of questions and concerns i had.
QUOTE (Evanski9 @ Nov 30 2011, 08:09 PM)
Btw your tank looks like poopy

How many GPH...???


http://lmgtfy.com/?q...ters to gallons

fern most def got a friend in me. Lol

If your in the so cal area and need body work and/or paint jobs, hit me up I give reefer discounts :]

#42
Gig 'em

Gig 'em

    Nano Reefer

  • Members
  • 87 posts
  • Joined 05 May 2011
Do you have any pictures of the wire connections for the wires going to the pots? I'm not entirely sure how to connect them the way you have in the diagram

#43
redfishsc

redfishsc

    Recycled sinner.

  • Members
  • 2,285 posts
  • Joined 09 Sep 2008
Excellent write-up.

I've been thinking of doing this for the planted tank forums but haven't had time.

Anyhow, I found something you'll want to correct.

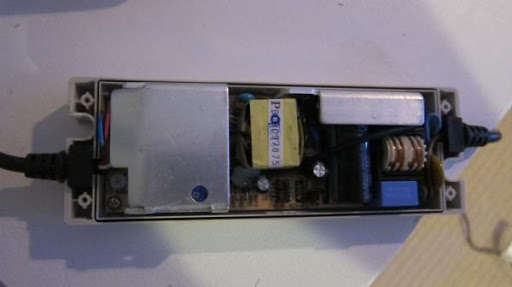

Your caption for the pic below says that the SRV2 screw is on the right, but it's actually on the left in the pic. For those who haven't taken apart a Meanwell, it can be a bit tricky to find in your pic, but THANK YOU for posting it. I'll be referring a LOT of people to this thread.

Posted Image
"Jesus did not come to make good people better. He came to make dead people LIVE."--- Ravi Zacharias.

Redfishsc's 11g Shoebox Reef, 36X9X9, LEDs, and a Beer Bottle

LED powered 23" Cube Planted Tank

Redfishsc's 10g RockBox Nano, custom AIO build......................................25g mixed reef

#44
jojoe972

jojoe972

    I didn't hit you! I simply high-fived your face!

  • Members
  • 907 posts
  • Joined 11 Mar 2010
  • Dallas, TX
Nice!!!!

#45
rockryno

rockryno

    Nano Reefer

  • Members
  • 402 posts
  • Joined 09 Oct 2008
  • Denver
good build!

#46
FishSticks

FishSticks

    Nano Reefer

  • Members
  • 99 posts
  • Joined 24 Jul 2011
Quick question about the Meanwell driver, so you need a 10v adapter for the pot to work? With two drivers you're going to have 3 plugs/outlet total?

Edited by FishSticks, 16 August 2011 - 04:19 PM.


#47
Sailfish

Sailfish

    Nano Reefer

  • Members
  • 434 posts
  • Joined 13 Sep 2009
  • Norway, Langesund

Quick question about the Meanwell driver, so you need a 10v adapter for the pot to work? With two drivers you're going to have 3 plugs/outlet total?

I once had a dog, and his name was BINGO! :)

#48
redfishsc

redfishsc

    Recycled sinner.

  • Members
  • 2,285 posts
  • Joined 09 Sep 2008

Quick question about the Meanwell driver, so you need a 10v adapter for the pot to work? With two drivers you're going to have 3 plugs/outlet total?


Sorry for the ridiculously late answer lol, but you have the right idea.

However, many Meanwells (in fact, EVERY one of the 10 Meanwells I've set up) could be "tweaked" to allow a 6-volt input into the dimmer to allow a full 1,000mA into the LEDs.

Meaning, you don't need exactly 10v. Anything from 6-10 will work fine. LOTS of cell phone chargers are 5.9v which will do just fine. I use a 5.0v on my 11g tank and my LEDs run at 700mA, but I could go higher.


All you have to do is hook everything up, put a multimeter inline with your LEDs to measure current, and turn it all on. Then carefully adjust the SRV2 screw (see the pic above, the white plastic screw on the bottom left). Turn that screw GENTLY until you hit the desired current level.
"Jesus did not come to make good people better. He came to make dead people LIVE."--- Ravi Zacharias.

Redfishsc's 11g Shoebox Reef, 36X9X9, LEDs, and a Beer Bottle

LED powered 23" Cube Planted Tank

Redfishsc's 10g RockBox Nano, custom AIO build......................................25g mixed reef

#49
jprime84

jprime84

    Nano Reefer

  • Members
  • 268 posts
  • Joined 16 Aug 2011
  • Apex, NC
How does a fixture like this compare to T5 HO or metal halide? How do the corals like it?

#50
Jodah

Jodah

    Nano Reefer

  • Members
  • 88 posts
  • Joined 02 Oct 2011
  • CT
Rapidled Has DIY 2 color Dimmer kit. goes for like $30 bucks.

OP: awesome write up, solved a lot of my issues especially considering I am doing a 20G tank thats almost exactly the same size. (Mines a bit taller at 16") So, I've essentially decided to use your exact same setup (except for the fixture) Thanks for solving a lot of questions that I had!
