#201
andru24

andru24

    Nano Reefer

  • Members
  • 434 posts
  • Joined 24 Jan 2009
  • Fairfax, VA

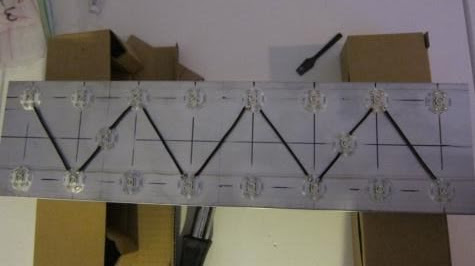

Here is my "Complete Idiot's Guide to Building an LED Array".

18 CREE XR-E (10 royal blue, 8 cool white) with 2 x Meanwell ELN 70-48D with dimmers.

This is over my 20g long AIO Peninsula tank.

Posted Image
Posted ImagePosted Image

#202
Sunstar

Sunstar

    Decepticon & Panic Monger

  • Members
  • 538 posts
  • Joined 07 Nov 2010
  • Ontario, Canada
I think I can add mine now.

2 Gallon Pico LED array.
and that belongs to my \Nemesis Nano 2 Gallon Tank

Breif Overview: This tank is for a contest on a different site. Project is DIY intensive. That thread covers most of the Pics of both tank cabinet build and lamp build.

Posted Image
This is my concept.

Posted Image
Mess of wires and project box
Posted Image
View of the Project Box before I added goodies
Posted Image
After I added goodies, boy was it crampped
Posted Image
Epic Fan Overkill. I will try to sneak stealths in at a later date.
Posted Image
OoooooH shiney!
Posted Image
Craptacular pic, but you can basically get the gist of it. The hood was originally designed to take 3 CPF screw in bulbs. They did okay but they were not very nice.
Posted Image
How it originally looked. (before I put the silver sticker reflector thing in.

Thanks Evil for your help and advice.

Edited by Sunstar, 16 March 2011 - 07:02 PM.

Nemesis Portal: 10 Gallon Nano.
Nemesis Nano: 2 Gallon Contest Tank - Now with 100% LED DIY Win.
Coming in near future: Nemesis II
"Yes, right. You're one of...those, Never understood why any self respecting Decepticon would choose automobile as his vehical mode when he could have flight." - Starscream (Transformers Prime. Ep 10)

Posted Image

#203
disaster999

disaster999

    dimsum

  • Members
  • 6,054 posts
  • Joined 22 Aug 2007
  • Hong Kong

simple LED Frag light
http://www.nano-reef...howtopic=241973

Posted Image
Posted Image
Posted Image
Posted Image


updated my frag light. added more blue and white LED. overall spread and color is a lot better than before
Posted Image
Posted Image
Posted Image
Posted Image

#204
Sledgerton

Sledgerton

    Nano Reefer

  • Members
  • 344 posts
  • Joined 03 Jul 2009
  • Houston
Added 12 cree XR-E, 6 RB, 6CW to my 24 inch t-5 MH combo fixture. LED's driven off two 1000ma backpucks and a 24v 4.2a power supply.

Posted Image

#205
azuly

azuly

    Nano Reefer

  • Members
  • 35 posts
  • Joined 13 Jun 2010
Dimmable DIY LED Light Fixture in Orca/Boyu TL-550 stock hood

25LED's / 12 XP-G R5 white + 6 XP-E Blue + 6 XR-E royal blue + XR-C red + 1 Stunner LED Strip 8000K White / 453nm Blue


Posted Image

Posted Image

Posted Image

Posted Image

#206
Polscot

Polscot

    Nano Reefer

  • Members
  • 148 posts
  • Joined 26 May 2010
  • Calgary
Fluval SPEC LED and canopy upgrade

stock

LEDS

Solder job

Fan

Canopy
IMG_0958.JPG IMG_0965.JPG

FTS
IMG_0967.JPG IMG_0964.JPG

build thread
http://www.nano-reef...howtopic=266826

Edited by Polscot, 03 April 2011 - 02:19 PM.


#207
Justind823

Justind823

    Silly Cow

  • Premium Members
  • 1,665 posts
  • Joined 10 Jun 2009
  • SoCal
Old pico LED unit I made using a graphics card heatsink with a built in fan. It had 2 CW and 2 RB Cree XR-E's.

I had a dimmable buckpuck for both colors.

Posted Image

Posted Image

#208
gabe_j

gabe_j

    B.A.M.F.

  • Members
  • 2,211 posts
  • Joined 22 Mar 2010
hey guys so after trying out the Mh route i've decided i wanted leds so after a lot of research i took the dive. so here's what i got.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

all blue
Posted Image

all white
Posted Image

both all on
Posted Image

mixed to my liking
Posted Image

thanks for looking if anyone wants a mh i've got one for sale its a 250 watt with icecap e-ballast, reflector and 3 bulbs 10k, 14k, 20k for $150 i won't be needing it any more.


-Gabe
LED build
my 40 beater bishes
retired 60-F

Something smells fishy.

you called?

go rectal or go home ;)


#209
reeftankguy

reeftankguy

    (censored) Stugots II

  • Premium Members
  • 4,278 posts
  • Joined 15 Jan 2009
20 CREE LED/T5 Retro to my 20" NEP - (10 CW/10RB)

Posted Image

Posted Image

Posted Image

-Thanks for the advice but what I really need are minions -


#210
Tyron

Tyron

    Nano Reefer

  • Members
  • 382 posts
  • Joined 19 Jun 2010
  • South Carolina, soon to be Richmond VA
You can add mine, hope it helps at least 1 person
http://www.nano-reef...howtopic=270176

#211
Cheetos

Cheetos

    Nano Reefer

  • Members
  • 290 posts
  • Joined 18 Jul 2006
Here is my Aqualight 24 LED retro! http://www.nano-reef...howtopic=271299

#212
BowieReefer84

BowieReefer84

    Nano Reefer

  • Members
  • 80 posts
  • Joined 25 Oct 2010
Add me please.

29gal biocube -> http://www.nano-reef...howtopic=272190

#213
bensanders

bensanders

    engineered reefs

  • Members
  • 1,449 posts
  • Joined 16 Nov 2010
  • Austin, TX
Here's one:

sandman's 40br LED build
sandman's 40br
40br LED build
DIY Vortech Battery Backup

"I think it odd that a cephalopod would invent itself a god"

#214
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,894 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
We are currently at 119 entries. Keep it coming everyone.

#215
malac0da13

malac0da13

    Nano Reefer

  • Members
  • 32 posts
  • Joined 20 Oct 2008
Posted Image
Posted Image
Posted Image

Tank is 48x24x16. There are 42x neutral white and 42x royal blue LEDs mounted on 2x 8.5x40 heatsinks using 40deg optics. The LEDs are hanging about 16inches off the water.

Edited by malac0da13, 14 June 2011 - 10:16 AM.


#216
redfishsc

redfishsc

    Recycled sinner.

  • Members
  • 2,285 posts
  • Joined 09 Sep 2008
If you have room for a saltless marine "amazonian reef", then here we go.

2 tanks: 45g cube, and an 11g rimless (36" long).

Warning, this is nuts, and totally experimental, and overkill, but actually looks spectacular in the end.

Build thread. Unit has digital ammeters in a custom, movable swing-arm canopy for tank access.
http://www.plantedta...less-glass.html

All LEDs on (45g, 23" cube planted fw tank). 3 Meanwell ELN60-48 dimmable drivers.

String ONE-- 8 XPG neutral white, 2 Bridgelux 402 cool white.
String TWO-- 12 XRE royal blue (missed one of them when soldering, whoops).
String THREE (dawn/dusk cycle)-- 1 20w Satistronics 15,000K white, 4 XPG cool white, 2 XPE red, 4 Rebel cyan.

Posted Image

Whites-- 500mA....... Blues, 150mA......... Dawn/Dusk, 190mA
Posted Image



11g rimless tank for red cherry shrimp and dwarf cory cats.

4 royal blue XPE, 3 warm white XPG, 3 neutral white XPG, 3 cool white XPG. 500mA current, no optics, 4" from water surface in custom light hood.

Amazingly, no visible spotlighting even spread out over a 35" length.

Meanwell ELN60-48 dimmable.

Posted Image

Posted Image

Edited by redfishsc, 26 June 2011 - 05:03 PM.

"Jesus did not come to make good people better. He came to make dead people LIVE."--- Ravi Zacharias.

Redfishsc's 11g Shoebox Reef, 36X9X9, LEDs, and a Beer Bottle

LED powered 23" Cube Planted Tank

Redfishsc's 10g RockBox Nano, custom AIO build......................................25g mixed reef

#217
lpsouth1978

lpsouth1978

    Nano Reefer

  • Members
  • 138 posts
  • Joined 26 Jul 2007
  • Colorado
Here is my latest build, sorry I don't have a build thread for it.

This build has:
6 Cree XP-E RB
5 Cree XP-G CW
2 RapidLED moonlights
2 1000mA dimmable buckpucks w/pot
1 350mA dimmable buckpuck w/pot

I used a small project box to hold the buckpucks and power plugs. Each of the colors is on its own power supply and dims seperately. I got a heatsink/fixture from nanotuners.com, drilled a hole in the back to run the wires through, and drilled some holes in the top so I could hang the fixture above the tank. This is hanging over my 3 pico maxi mini anemone tank. these pics are old and I had just finished my cycle, but they are the only ones I have that show the light above the tank. I hope you all like it.

Posted Image
Posted Image
Posted Image
Posted Image

#218
TinyGiant

TinyGiant

    Stocking my 55g In Wall!

  • Members
  • 3,226 posts
  • Joined 18 Apr 2010
  • Rochester, NH
can you start a category for the gu10 setups?

#219
cactuspat

cactuspat

    Nano Reefer

  • Members
  • 77 posts
  • Joined 20 Apr 2003
  • Tinley Park, IL
24 led diy for a 20L
16 XP-E RB
8 XP-G NW
2 700mA inventronics drivers
Posted Image
Posted Image
Posted Image

Edited by cactuspat, 02 August 2011 - 02:28 PM.

Let the hate flow threw the pally. Give it plenty of room to embrace the dark side. Spot feed it younglings to keep evil up.


#220
bjbass

bjbass

    Nano Reefer

  • Members
  • 350 posts
  • Joined 07 Aug 2011
  • Lewisburg, PA
Here is my build for a BC14 using an Aquastyles kit.

View my thread here.

If anybody has any questions feel free to ask.


Posted Image

Posted Image
Posted Image

#221
TinyGiant

TinyGiant

    Stocking my 55g In Wall!

  • Members
  • 3,226 posts
  • Joined 18 Apr 2010
  • Rochester, NH
Custom GU10 Ebay LED hood/hanger for 28g JBJ nanocube

pretty much done with the custom build I am doing for a club members 28g nanocube. It will house a total of 16 of the ebay gu10 leds (http://www.nano-reef...howtopic=267432)

he has the stand with the metal risers so there is a dead space the cross on the bottom of the arm will slide into to counter lever and lock it into place.

All i need now is the fans to show up so i can mount them on the rear and the led strips to use as moon lights. This has been a fun project.

The metal arm is a TV wall mount stand arm inverted. The kind of thing that mounts an old crt tv to the wall.



Posted Image
Posted Image
Posted Image

#222
TinyGiant

TinyGiant

    Stocking my 55g In Wall!

  • Members
  • 3,226 posts
  • Joined 18 Apr 2010
  • Rochester, NH
i made a build thread now that the gu10 LED hood is completed

http://www.nano-reef...howtopic=282014

#223
couevas

couevas

    ar-ro-gance (ar'o gans) n.

  • Members
  • 278 posts
  • Joined 24 Jan 2010
  • Seattle, WA
Here is my Aquaticlife 24" T5 Retro Build


Posted Image

Posted Image

Posted Image

Edited by couevas, 24 October 2011 - 08:42 AM.

20 Tall AGA Mixed Reef
My Custom DIY LED Build
125 SeaClear Acrylic Semi-Agressive FOwLR


Couevas....formerly Quavecube2.....formerly Quavecube

#224
JBM

JBM

    breaking rules daily

  • Members
  • 2,966 posts
  • Joined 21 Oct 2008
  • long island ny
built a new one.

Was a 18" t5 nova fixture. Now it houses a retro fit from aquastyle

7 cool white 5 royal blue, 2 uv


Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
5.5g pico
72 bow fowlr
im just opinionated, dont like it? Keep it moving

#225
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,894 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
Sorry for the absense guys. Everything should be updated now.

Tiny, you have your own category now for "based" LED setups (E26/27, MR16, GU10, etc...).

Edited by evilc66, 31 October 2011 - 07:23 AM.
