My newest project...

Posted Image

A CADLIGHTS 12G :D

Proposed Mods...

20 Cree's... 10cw's and 10rb's (50/50)
4 Pucks (adjustable)
1 Big Dell Fan (thermostat controled)

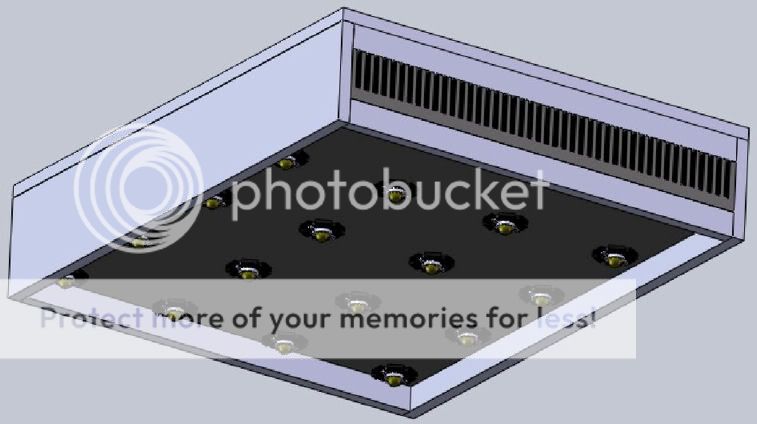

All placed inside a Aluminum Pendant I started last night... The black cage will hold the pucks...
Posted Image

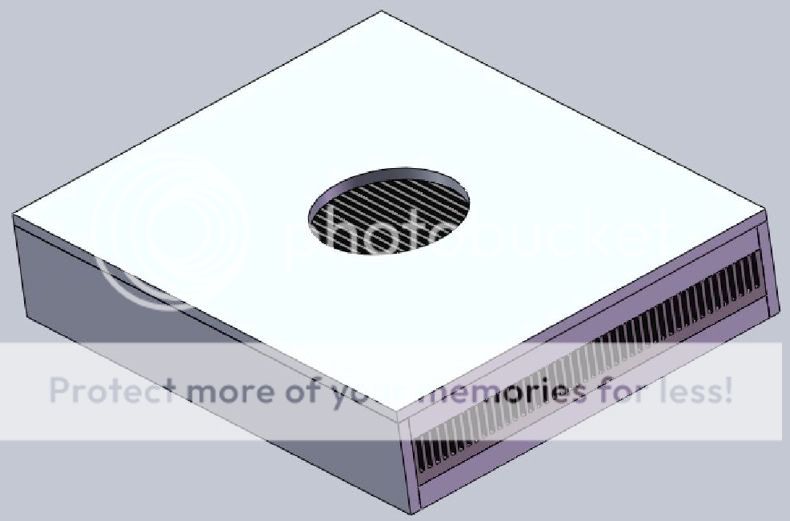

This is the pendant with the heat sink... Notice it ports out the side vents...
Posted Image

More to come after it progresses...

Jon...

Edited by reeftankguy, 09 December 2010 - 07:02 AM.

-Thanks for the advice but what I really need are minions -


#2
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,574 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
Interesting. Very industrial.

#3
adinsxq

adinsxq

    hello kitty

  • Moderators
  • 14,523 posts
  • Joined 30 Sep 2002
  • CA, VA
neato

Long live the CM!


#4
reeftankguy

reeftankguy

    (censored) Stugots II

  • Premium Members
  • 4,183 posts
  • Joined 15 Jan 2009

Interesting. Very industrial.


What can I say evil... except...... That I get the materials free from work... :P

-Thanks for the advice but what I really need are minions -


#5
subielover

subielover

    Nano Reefer

  • Members
  • 757 posts
  • Joined 27 Mar 2008

What can I say evil... except...... That I get the materials free from work... :P

Never would have guessed that, lol. Interesting indeed.

#6
dadashot

dadashot

    Nano Reefer

  • Members
  • 8 posts
  • Joined 07 May 2009
looks like it can take a bullet :) or 2

cant wait to see how those LEDs light up the tank

#7
reeftankguy

reeftankguy

    (censored) Stugots II

  • Premium Members
  • 4,183 posts
  • Joined 15 Jan 2009
Finally got everything moved over to the CAD 12g... No Cycle and everything is doing great a week after...

Still working on the LED pendant though...

FTS

Posted Image

-Thanks for the advice but what I really need are minions -


#8
reeftankguy

reeftankguy

    (censored) Stugots II

  • Premium Members
  • 4,183 posts
  • Joined 15 Jan 2009
Well I finally finished my LED build! Below is a list of parts and pic's and a FTS with the LEDS on...

Parts and tools Assembly List
Custom Aluminum Pendant (Assembled with Rivets and Screws (Aluminum)) FREE
Heat sink (Custom fabricated by my company machine shop) FREE
10 - CW Cree XR-E Q5 Stars $107.04
10 - RB Cree XR-E Stars $89.88
4 - 3023-D-E-1000P Wired BuckPucks, 1000mA with Potentiometer $79.96
1 - Tube Arctic Silver Thermal Compound $6.99
1 - Drill Press (Used one from work)
1 - 18-8 SS Round Head Phillips Machine Screw 4-40 Thread, 3/8 Length (100 pack) $3.75
1 Nylon 6/6 General Purpose Flat Washers (100 pack) $2.48
1- Tap and Drill Set $22.61
POTRANS 24VDC , 12.5A, Fan Cooled Power Supply $24.95
22 Gage wire - 3pack Red,Black,Green 25ft each , Radio Shack - $7.85
2 Power supply cords - Free from work
Wire Nuts, 50ct, TrueValue - $4.00
Solder and soldering gun Already owned
Assembly Labor Priceless!

TOTAL COST = 386.79+

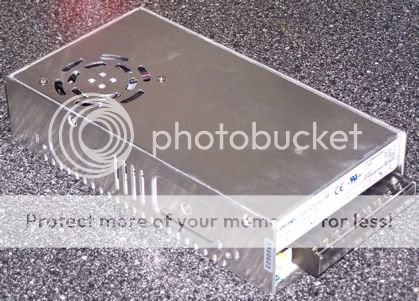

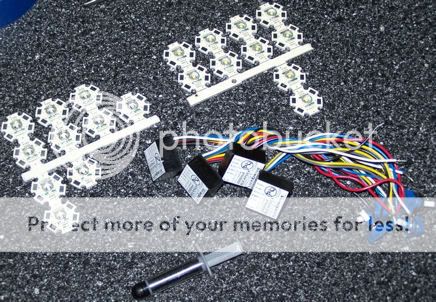

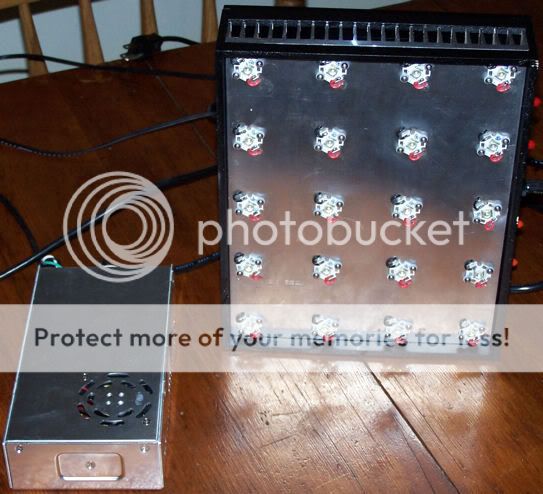

The LEDS and Pucks and PSU...
Posted Image
Posted Image

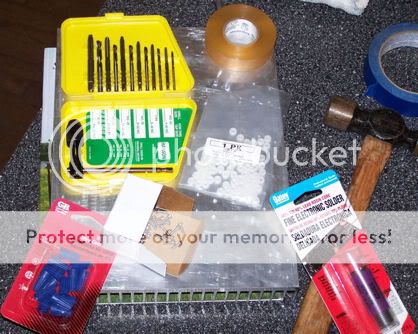

The Misc. Parts
Posted Image

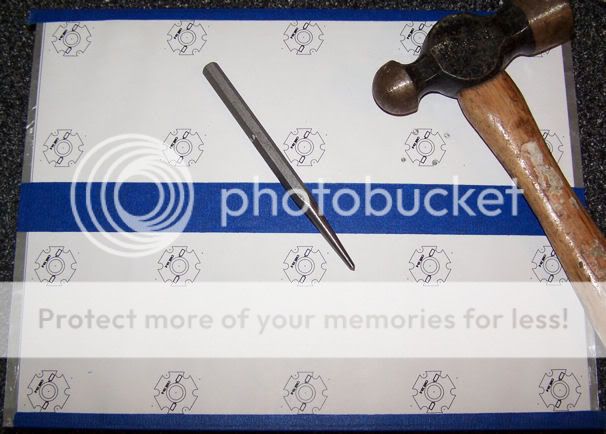

Template on HS to punch for Drilling
Posted Image

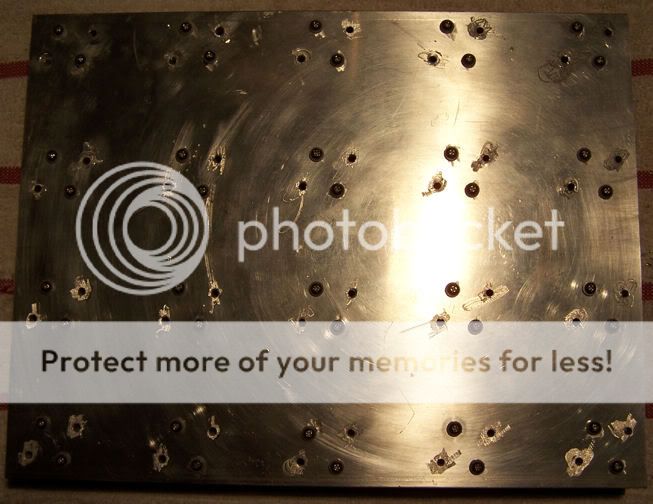

HS Drilled and Tapped
Posted Image

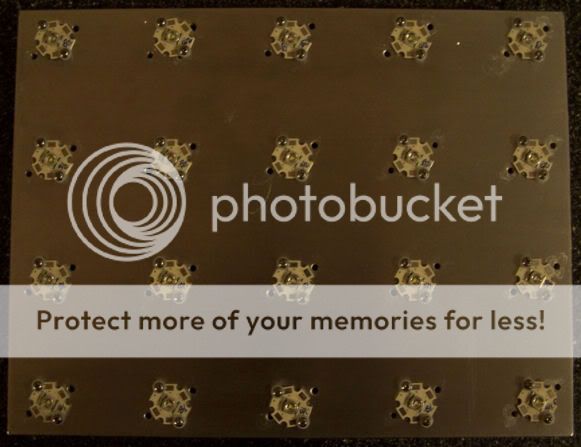

ALL LEDS Mounted in 50/50 Patern
Posted Image

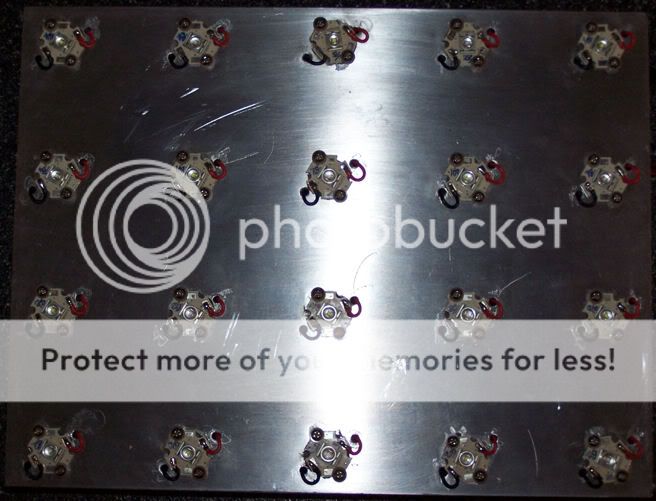

LEDS all Soldered up!
Posted Image

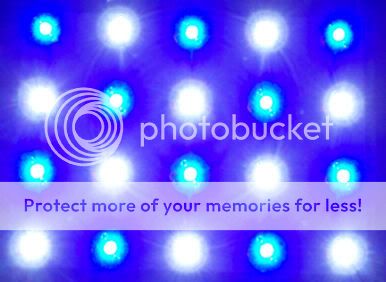

TEST BURN!
Posted Image

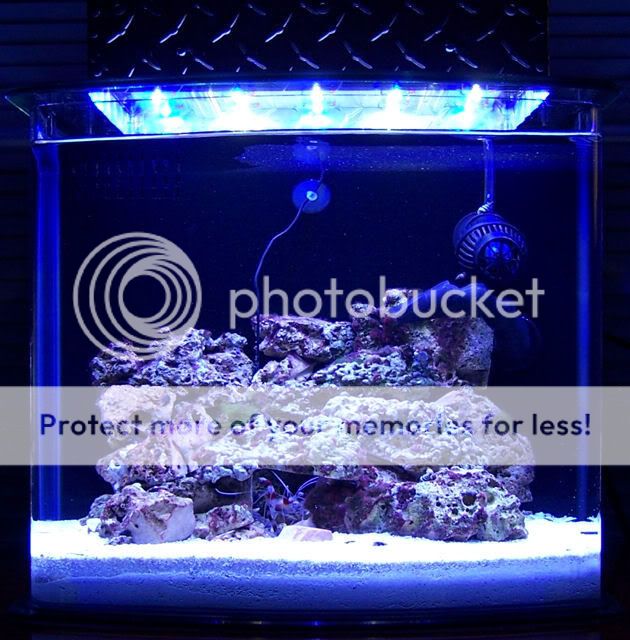

FINISHED!

FTS's...
Posted Image

Posted Image

Posted Image


This is Great! Looks alot Brighter and Better in Person!!!
Very happy with this Build and the light output! Highly recomend this DYI project to all!


UPDATE 6/30/2009

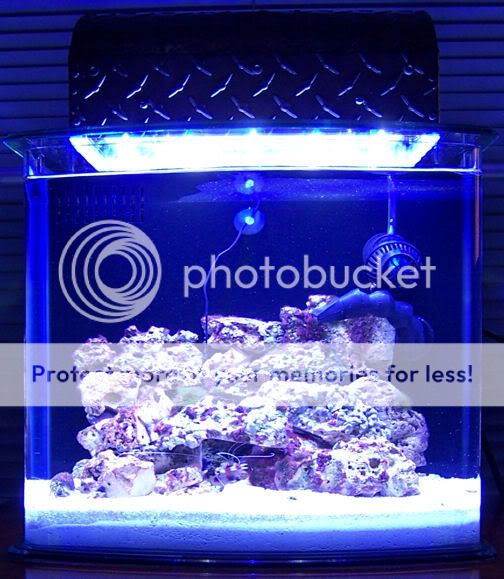

Well I have decided to Build a different Enclosure... The Current one is just to much Bling, Bling! Plus it looks bulky... Just recieved my .25" Plexiglass and am going to build this one...

Posted Image

Posted Image

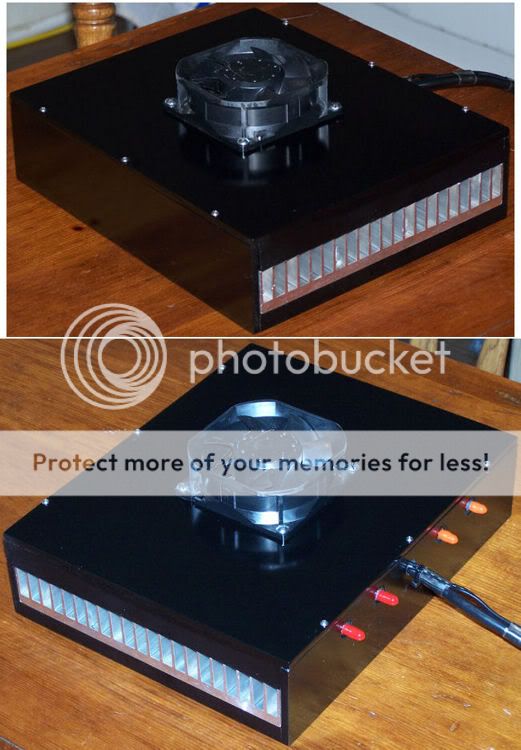

Well Here is the Finished product...
Posted Image

Bottom shot...

Posted Image

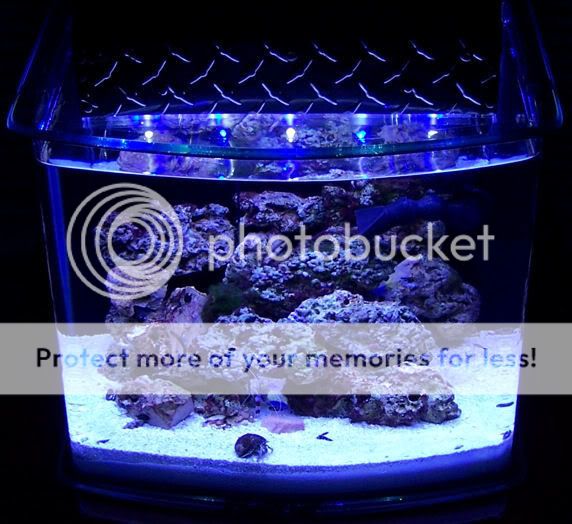

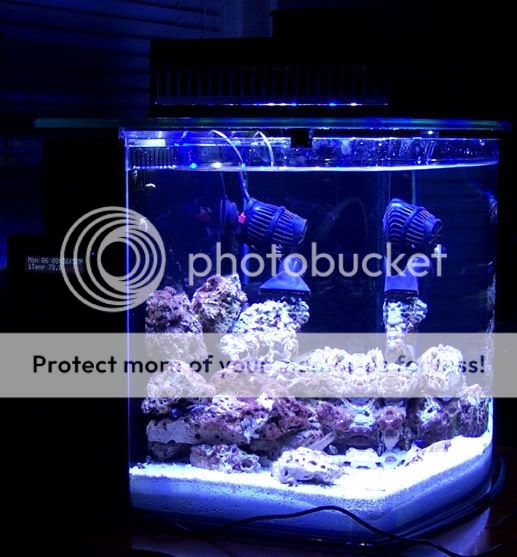

FTS with room lights on and LED's on Max power...
Posted Image

FTS with room lights off and LED's set to Half Power...
Posted Image

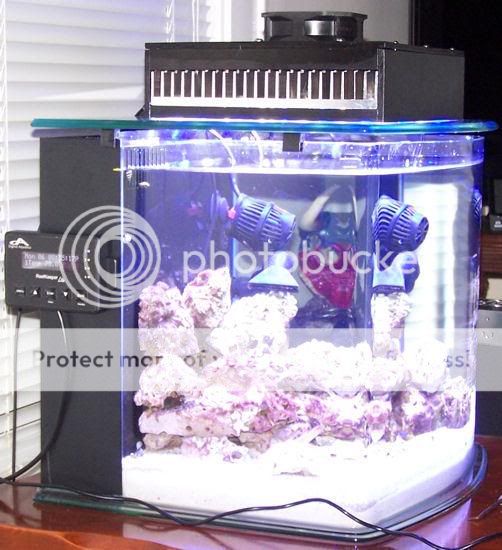

FTS...
