#3026
Mile_high11

Mile_high11

    Nano Reefer

  • Members
  • 2 posts
  • Joined 26 Apr 2012

Also here is a quick image of the proposed layout that I did in SketchUp. Any recommendations are much appreciated.

-Brian

Attached Thumbnails

  • LED_Array.jpg


#3027
jakob1980

jakob1980

    Nano Reefer

  • Members
  • 126 posts
  • Joined 16 May 2007
I want to start off by saying this is an awesome guide. It has answered almost all my questions on LEDs. I do have one question though. I have a 20 long and Im just wondering what you would suggest for this tank. If this has been covered, Im sorry, I must have missed it. I would probably go 50/50 dimmable but Im not sure how many. I want to be sure and have plenty of light for anything. Any info is greatly appreciated. Thanks












#3028
jeanty

jeanty

    Nano Reefer

  • Members
  • 9 posts
  • Joined 05 Apr 2012
thank you for this .you do lots of work about this .help lots of people to know about led lights .and believe led lights will welcome a good market . :o
where there is a will there is a way.
3w led

#3029
gimptastic matt

gimptastic matt

    Nano Reefer

  • Members
  • 169 posts
  • Joined 11 Mar 2012
  • north wales uk
Hi guys im having a little trouble after stripping down some 3w gu10 leds and cant get power from the driver to the led
ive tested the curcuit and its fine powers going in just not coming out of the driver
my dymax iq3 2 gallon pico reef
http://www.nano-reef...howtopic=297163

#3030
121a

121a

    Nano Reefer

  • Members
  • 4,732 posts
  • Joined 30 Aug 2006
  • Chicago,IL

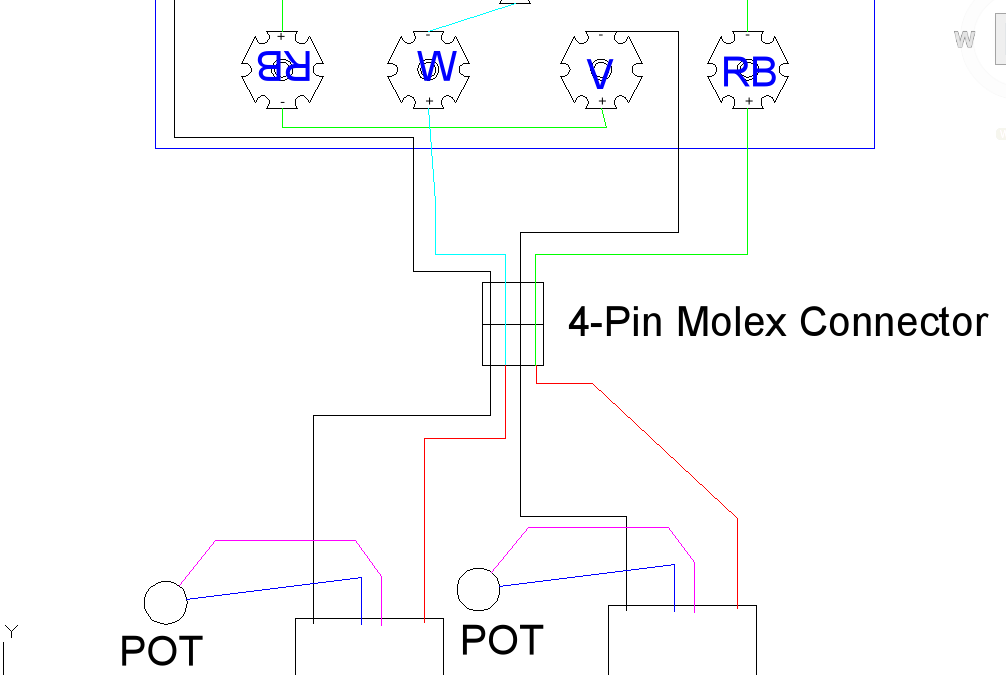

Ok, so I'll be building a 14x3w LED setup soon and I want to keep it as clean as possible. My question is simple, can I use a 4-pin molex connector (like from a computer) for a quick disconnect from the leds to the drivers.

Here is what I am thinking...
Posted Image

Then if I can find a six pin laying around here, I can wire in a fan as well.

Is that possible or will something happen? I can't see how it wouldn't be but just making sure.

Main Tank: 150g Reef

Getting it back on track

http://www.nano-reef...grr-pics/page-2



121a's BridgeLux LED Powered RKL Controlled Aqueon 4gal- DISMANTLED
http://www.nano-reef...howtopic=302636

My T-5 Thread (good stuff)
http://www.nano-reef...?...=140511&hl=


#3031
Divine

Divine

    Nano Reefer

  • Members
  • 6 posts
  • Joined 11 May 2012
  • 40.7142° N, 74.0064° W
New to reefing and DIY'ing. Here is my tank in the works. ####ty I-phone pic. Learning a lot. ..built a dimmable 3 CREE Royal Blue XT-E and 1 Cool White XP-G light. 2 Gallon Fluval Spec. I think I'm addicted..

Posted Image

Edited by Divine, 29 May 2012 - 01:29 PM.

Posted Image

#3032
JeremyUSMC

JeremyUSMC

    Nano Reefer

  • Members
  • 1 posts
  • Joined 31 May 2012
Was looking at getting this LED kit any thoughts?? just don't wanna get ripped off. Thanks



http://www.ebay.com/...=item41666a0831

#3033
kirsto71

kirsto71

    Nano Reefer

  • Members
  • 6 posts
  • Joined 10 May 2011
I would like some assistance. I have wired up the dimming circuit incorrectly on my Thomas Research driver (1-10v dimming). I am not sure if i have wired the 1-10v supply directly into the ground or wired the 1-10v with no ground attached ( i have a complex wiring circuit and have been caught out). The lights wont turn on now and i wanted to know if the circuit is fried. The lights did come on and dim up and down and flickered but then just turned off and stayed off. I fear the only solution is to buy a new driver. One option i thought was to wire in the 1-10v supply from the driver into the control wire and see if that gets the lights working?

Is it likely that the circuit would be permanently damaged if wired incorrectly?

#3034
Jchny6

Jchny6

    Nano Reefer

  • Members
  • 2 posts
  • Joined 27 Aug 2012
What would be an appropriate amount of blue and 10k Crees for a 55 gallon driven at say 700ma to 1000ma?

#3035
Sailfish

Sailfish

    Nano Reefer

  • Members
  • 434 posts
  • Joined 13 Sep 2009
  • Norway, Langesund
Quick question: Can I use a 9V battery with a 20ohms resistor in series to check if my 3W Cree XR-E LEDs are working, before I solder them all together?

#3036
Julian_blnc

Julian_blnc

    High School Reefer

  • Members
  • 935 posts
  • Joined 18 Sep 2012
  • Tampa, Fl
Would a few of these work for a Refugium light

http://cgi.ebay.com/...em=150883034120



#3037
Chris L

Chris L

    LED/T5 FOOL

  • Members
  • 355 posts
  • Joined 29 Jun 2010

Ok, so I'll be building a 14x3w LED setup soon and I want to keep it as clean as possible. My question is simple, can I use a 4-pin molex connector (like from a computer) for a quick disconnect from the leds to the drivers.

Here is what I am thinking...
Posted Image

Then if I can find a six pin laying around here, I can wire in a fan as well.

Is that possible or will something happen? I can't see how it wouldn't be but just making sure.


Yup its what i used!!

http://www.nano-reef...howtopic=308182

120 Gallon reef :)


#3038
Kribensis_fish

Kribensis_fish

    Nano Reefer

  • Members
  • 56 posts
  • Joined 14 Feb 2012
Hello, i have a cube aquarium, is about 70 litres (40x40x45)cm. How many and which led's should i use ?
I want to have sps and lps corals.

Edited by Kribensis_fish, 01 November 2012 - 08:55 AM.


#3039
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 18,656 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL

Hello, i have a cube aquarium, is about 70 litres (40x40x45)cm. How many and which led's should i use ?
I want to have sps and lps corals.

http://www.nano-reef...howtopic=311998

#3040
ViiniciusB

ViiniciusB

    Nano Reefer

  • Members
  • 2 posts
  • Joined 22 Nov 2012
  • Brazil / São Paulo
Hello there, im new in this forum.
Im doing my LED lighting DIY.. and i have some questions.

9x CREE XM-L Cool White U2 LED
2x CREE XM-L Neutral White LED
3x CREE XP-E Blue 3W LED
6x CREE XT-E Royal Blue LED
2x Philips Rebel Cyan LED
2xViolet UV LED
ALL OF THEM WITH 80º DEGREE LENS

3x Mean Well ELN-60-27D dimmable driver

Im buying the reef stuff yet, but i have 250L.. (100cmx50cmx50cm)
Pretend to have LPS, zoans, and fishies.

What you thinks guys? More leds?
Someone have a good idea about the positions of the leds? the distribuction?

Thanks,
Vinicius
Loadin.. 250L

#3041
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 18,656 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL

Hello there, im new in this forum.
Im doing my LED lighting DIY.. and i have some questions.

9x CREE XM-L Cool White U2 LED
2x CREE XM-L Neutral White LED
3x CREE XP-E Blue 3W LED
6x CREE XT-E Royal Blue LED
2x Philips Rebel Cyan LED
2xViolet UV LED
ALL OF THEM WITH 80º DEGREE LENS

3x Mean Well ELN-60-27D dimmable driver

Im buying the reef stuff yet, but i have 250L.. (100cmx50cmx50cm)
Pretend to have LPS, zoans, and fishies.

What you thinks guys? More leds?
Someone have a good idea about the positions of the leds? the distribuction?

Thanks,
Vinicius

http://www.nano-reef...howtopic=311998

#3042
ReeferTJ

ReeferTJ

    T.J.

  • Members
  • 109 posts
  • Joined 30 Sep 2009
  • VA
What if i wanted to Anodize my heat sink? (for aesthetic purposes)
Would that affect heat transfer?
Dolphin larvae. Pretty harmless until they grow up..

#3043
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 18,656 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL

What if i wanted to Anodize my heat sink? (for aesthetic purposes)
Would that affect heat transfer?

Doubt it.

#3044
ViiniciusB

ViiniciusB

    Nano Reefer

  • Members
  • 2 posts
  • Joined 22 Nov 2012
  • Brazil / São Paulo
What about Led 30W cool white?
2 of them.. because i bought less leds that i real need.
I have 100x50x50 (Centimeter).

Im thinking to buy 2x 30W cool white.. and 10 Royal blue xm-L or something like.
Need more UV? Turquise?
Loadin.. 250L

#3045
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 18,656 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL

What about Led 30W cool white?
2 of them.. because i bought less leds that i real need.
I have 100x50x50 (Centimeter).

Im thinking to buy 2x 30W cool white.. and 10 Royal blue xm-L or something like.
Need more UV? Turquise?

Don't buy into the 'big multichip' LEDs, they're pretty terrible, and definitely don't use cool white. There are no high-powered royal blue LEDs until Philips releases the RB Luxeon M, but there is not even an ETA on them. Check out some of the threads in my sig for updated LED info.

#3046
1reefluvr2

1reefluvr2

    Nano Reefer

  • Members
  • 1,838 posts
  • Joined 18 Oct 2009

Don't buy into the 'big multichip' LEDs, they're pretty terrible, and definitely don't use cool white. There are no high-powered royal blue LEDs until Philips releases the RB Luxeon M, but there is not even an ETA on them. Check out some of the threads in my sig for updated LED info.

Im wanting to make a DiY led fixture on my 48long 36wide 24 deep tank . Mixed corals mainly sps. Wanting dimmable is a must Im not wanting full spectrum just nutral whit and royal blue what would I need and how much would the cost be? Im lost in that part of all I would need. Any help would be great thank you for your time and yes I will post pics when i do it and have it working:)

#3047
tcobos

tcobos

    teecee

  • Members
  • 254 posts
  • Joined 21 Apr 2007
  • Phillips Ranch
this is great! :mellow:

"Tought times don't last, Tuff people do!"[color=#3366FF]


#3048
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 18,656 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL
See the links in my sig.

#3049
jedimasterben

jedimasterben

    LED world domination!

  • Premium Members
  • 18,656 posts
  • Joined 18 Jan 2012
  • Okeechobee, FL

Im wanting to make a DiY led fixture on my 48long 36wide 24 deep tank . Mixed corals mainly sps. Wanting dimmable is a must Im not wanting full spectrum just nutral whit and royal blue what would I need and how much would the cost be? Im lost in that part of all I would need. Any help would be great thank you for your time and yes I will post pics when i do it and have it working:)

If you're not doing full-spectrum, then I would do a mixture of 4000K whites, royal blue, and cool blue. Roughly a 7:16:5 ratio of those [NW:RB:B]. You'll need a base of about 20-24x whites, and go from there.

#3050
thackett114

thackett114

    Nano Reefer

  • Members
  • 11 posts
  • Joined 19 Dec 2012
I am in the process of selecting a color plan for my diy led. I am building this for a 180 gallon I will be installing in January. I want to build an LED system I can grow in to. I know I am going to get crap for this but I will be using Bridgelux 3w LEDs - just not willing to spend the money on CREE LEDs. Anyway, the tank is 72x24x24. I am planning on doing a about a 1.75:1 ratio RB:NW. This will be installed on a 48" heat sink. I would also like to incorporate violet, cyan, blue, and red to have a more complete spectrum. Just looking for some recommendations for quantities on each color. Thanks.
