Uwwmatt's DIY Biocube Fuge Light


  • Please log in to reply
109 replies to this topic

#1
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin

DIY FUGE LIGHT


Tools
-Screwdriver
-Marker
-Drill
-Hand Saw
-Utility Knife
-Paint Scraper
-1/4inch drill bit

Posted Image

Supplies from Home Depot
-Hampton Bay 7watt fluorescent task light x2 (three pack $25)
-Self adhesive Velcro $2.00
-Sheet Metal Screws x8 $2.00
-Gang Box $3.50

First remove the nails from the gang box.

Posted Image
I found this in the electrical supplies aisle.

Second drill a hole in the bottom of the gang box

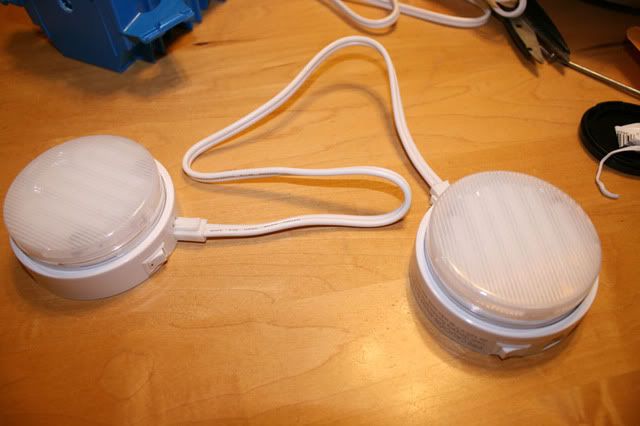

Third connect the two lights together with the included cord.
Posted Image

Fourth string the power cord through the drilled hole in the gang box and connect it to the lights.
Posted Image

Fifth arrange both lights so the fit snugly with the wires underneath. I found placing them at an angel worked best.
Posted Image

Sixth take the hard plastic packing material that came with the fluorescent light and cut out a rectangle roughly the size of the gang box. Lay it over the box and use a marker to mark the screw holes. Screw it down

Posted Image
If you feel like getting fancy use Plexiglas. I left my light running for 4 straight days to test the material and it held up fine. The lights don't get very warm. I have my fuge lights running opposite my main display so they are only on about 10 hours at a time. If you plan on going 24/7 you probably should find better material.

Posted Image

Seventh trim the excess plastic with your utility knife. Now its starting to look good!

Posted Image

Eighth (this should actually be step 2) Saw off those extra pieces around the gang box.

Posted Image

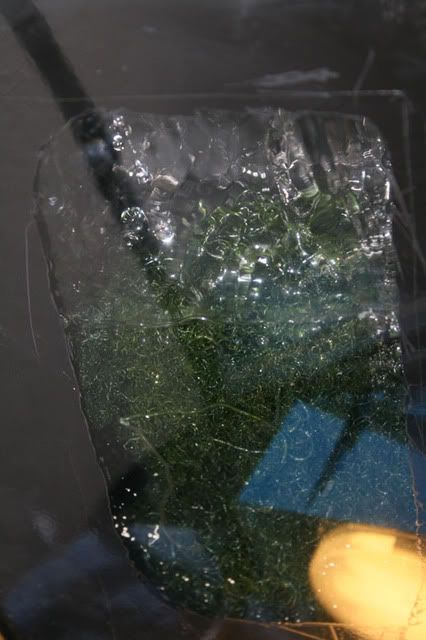

Ninth prepare your tank. 3 1/2inch from the left(when your facing the back) and 5 1/2 to from the right. I first scored the paint with my utility knife.
Posted Image

Tenth scrape, scrape, scrape. I found a paint scraper worked well here.
Posted Image

Eleventh apply Velcro
Posted Image

Your done!
Posted Image



Other Things to Consider
-They make black gang boxes, but they were all out when I went to the store.
-Use Plexiglas for the cover
-If your tank is already up and running do not remove the bioballs all at once. Take a handful out every day over the period of a week.
-There is a small amount of light that leaks out around the edges. My tank is in my living room so I don't care. In fact it makes a good night light, but you may want to make a cloth seal, or use you leftover Velcro to secure a piece of fabric over the box.
-I have not noticed change in temperature, but you should check to make sure yourself.
-The Gang Box is about 4 inches deep so take that into account if your tank is right up against a wall

Nanoreef11's version
Posted Image

Davidr2340's
Posted Image

Edited by uwwmatt, 08 January 2009 - 10:46 PM.

Check out my previous June 2010 TOTM winner:Click Here!

#2
John7429

John7429

    Nano Reefer

  • Members
  • 194 posts
  • Joined 25 Jan 2008
  • Garden Grove, CA
Very nice DIY!

Thanks!

#3
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,953 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
Nice write-up. Detailed and clear pictures (I hate fuzzy pictures :rant:)

#4
scottyreef

scottyreef

    Never take life seriously. Nobody gets out alive anyway.

  • Members
  • 3,436 posts
  • Joined 04 Mar 2008
  • Roseville,CA
Nice work

#5
charlesgage

charlesgage

    Nano Reefer

  • Members
  • 58 posts
  • Joined 04 Sep 2008
  • West Michigan
Looks cool, what is the spectrum on those bulbs?

#6
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin

Looks cool, what is the spectrum on those bulbs?

daylight
Check out my previous June 2010 TOTM winner:Click Here!

#7
Momp05

Momp05

    Nano Reefer

  • Members
  • 18 posts
  • Joined 11 Feb 2008
  • Meriden, CT
Fuge light looks great!!!

I have a question though. This might be stupid, but why do you need to cover the box with anything??

Thanks!

#8
stoney waters

stoney waters

    Rano Neefer

  • Members
  • 1,452 posts
  • Joined 29 Jan 2005
  • Illinois
Good job. Everything fits nicely together.

#9
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin

This might be stupid, but why do you need to cover the box with anything??


Mainly because I needed a surface to attach the Velcro to.

Edited by uwwmatt, 18 September 2008 - 08:06 PM.

Check out my previous June 2010 TOTM winner:Click Here!

#10
Muggz

Muggz

    I have crabs...

  • Members
  • 262 posts
  • Joined 29 Aug 2008
  • Ontario, Canada
Uwwmatt, great post, easy to understand and see how you did it. I think this will be my lighting choice for my future fuge (8G BC).

Question: Have you noticed any heat problems from within the gangbox? I mean, is there a danger of the box melting from the heat of the lights?

Thanks!
Muggz' BioCube 8 2.0

Muggz' BioCube 8 1.0

Only two things are infinite, the universe and human stupidity, and I'm not sure about the former.
- Albert Einstein

#11
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin

Uwwmatt, great post, easy to understand and see how you did it. I think this will be my lighting choice for my future fuge (8G BC).

Question: Have you noticed any heat problems from within the gangbox? I mean, is there a danger of the box melting from the heat of the lights?

Thanks!



The gang box stays cool, it has many vents in it.

If your biocube is in your room you are going to want to figure out a way to keep the light from exiting through the vent holes, even though there is not a ton of light escaping there is still enough that it would probably bother you if you were trying to sleep.
Check out my previous June 2010 TOTM winner:Click Here!

#12
JSalser

JSalser

    Nano Reefer

  • Members
  • 39 posts
  • Joined 27 Aug 2006
  • WNC
Uwwmatt how is the cheato growth with those lights... I just made a similar light and I am wondering how much growth I should expect.

Edited by JSalser, 23 September 2008 - 01:22 PM.


#13
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin

Uwwmatt how is the cheato growth with those lights... I just made a similar light and I am wondering how much growth I should expect.


We will have to wait and see. Mine has only been running since the 18th. It seems like its starting to get a little cramped in my back chamber, but that might just be my imagination.
Check out my previous June 2010 TOTM winner:Click Here!

#14
BJK2

BJK2

    Nano Reefer

  • Members
  • 852 posts
  • Joined 06 Jul 2004
  • Chicago, IL (suburbs) / Univ of Missouri
very cool! I did something similar, but just took a 18watt coralife mini aqualight and mounted it back there. You'll have a lot of success I guarantee you!
~Billy~

90 Gallon RR Coralife T5's, 100+ lbs LR, 20 Gal Sump, Various fish, and a pair of niger triggers!

BioCube 14... Currently starting over after it crashed in the dorm last November.

MU Aquarium Club member! Go TIGERS!!

#15
nanoreef11

nanoreef11

    Nano Reefer

  • Members
  • 773 posts
  • Joined 21 May 2008
  • Long Beach
Very nice DIY. I will consider this for my BC14 as I have high nitrates and nothing is in the tank. I needed an idea for the fuge and this is perfect. Thanks for the great idea.

#16
nanoreef11

nanoreef11

    Nano Reefer

  • Members
  • 773 posts
  • Joined 21 May 2008
  • Long Beach
I did this mod today with a gang box, plexiglass, 5100k bulb, bulb adapter (for lights bulbs), and light bulb cord. Was any easy to do mod. Just pulled it off at work with my boss. I work at a fish store so we had all the tools.

Hope to get some cheato in my tank now and get the nitrates down.

#17
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin
Nice work, you should post a picture of it in here.
Check out my previous June 2010 TOTM winner:Click Here!

#18
nanoreef11

nanoreef11

    Nano Reefer

  • Members
  • 773 posts
  • Joined 21 May 2008
  • Long Beach
I will post a pic as soon as i get home to my aquarium. I stay at my dads part of the time and my aquarium is at my moms. Look for a pic on here and my thread between wed-thurs. Thanks for the idea again.

#19
nanoreef11

nanoreef11

    Nano Reefer

  • Members
  • 773 posts
  • Joined 21 May 2008
  • Long Beach
I posted pics on my thread. I will post pics here as well.

Here is a link to my page with the custom Biocube 14

http://www.nano-reef...?...t&p=1851074




I used a 5500K bulb that is energy efficient. Just bought a light bulb adapter and lamp cord. Was fairly cheap.

Posted Image

Posted Image

Posted Image

Chamber 2

Posted Image

If there are questions on the setup or prices I am willing to answer them.

Edited by nanoreef11, 09 October 2008 - 10:52 PM.


#20
stoney waters

stoney waters

    Rano Neefer

  • Members
  • 1,452 posts
  • Joined 29 Jan 2005
  • Illinois
Here is my grandaddy of all behind the glass fuge lights.

http://www.nano-reef...=80#entry645119

#21
davidr2340

davidr2340

    Huh?

  • Members
  • 6,171 posts
  • Joined 08 Dec 2007
  • Mill Creek, WA

Here is my grandaddy of all behind the glass fuge lights.

http://www.nano-reef...=80#entry645119

Make me one... :mellow:

;)

Solana v2.0










#22
nanoreef11

nanoreef11

    Nano Reefer

  • Members
  • 773 posts
  • Joined 21 May 2008
  • Long Beach
Thanks for getting the pic up uwwmatt. I'll post a better pic when its day time. I just wanted to get a post in last night. I could have made the install look better but I just threw together what I had at work and called it good haha.

Do you think the 5500K bulb I put in will be sufficient for the cheato to grow under?

Hows your cheato holding up? Any growth under those lights?

#23
evilc66

evilc66

    LED Gawd

  • Premium Members
  • 17,953 posts
  • Joined 26 Aug 2007
  • Shelby Twp. Michigan
The warmer the light the better it seems. A 10W halogen (2000-3000K) grows my chaeto like crazy.

#24
uwwmatt

uwwmatt

    Nano Reefer

  • Members
  • 3,730 posts
  • Joined 19 Oct 2007
  • Wisconsin
Yesterday I harvested 2 handfuls of cheato and tossed it, so it seems to be growing well.
Check out my previous June 2010 TOTM winner:Click Here!

#25
nick021892

nick021892

    Nano Reefer

  • Members
  • 164 posts
  • Joined 14 Aug 2007
I was wondering how difficult it was to scrape the paint off of the back of the tank. Could I try to use the stainless algae scraper that I use inside the tank or do I need a paint scraper?
